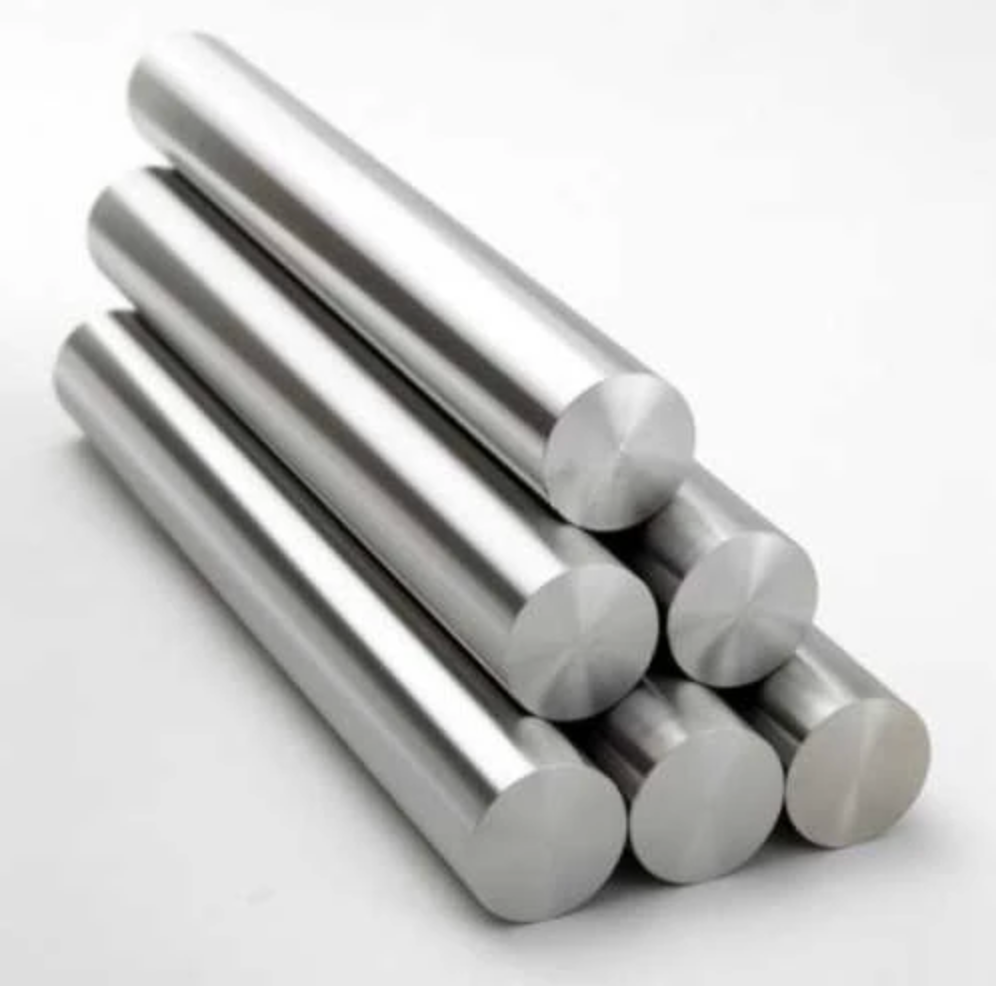

Custom Titanium Machining Parts
| Applications | Precision titanium machining parts with excellent strength-to-weight ratio, mechanical properties, accuracy, and repeatability. 3 and 5-axis CNC milling available. |
|---|---|
| Strengths | Corrosion resistant – high accuracy – repeatability |
| Weaknesses | Greater geometrical restrictions than 3D printing |
| Lead Time | < 10 days |
| Wall Thickness | 0.75 mm |
| Tolerances | ±0.125 mm (±0.005″) |
Titanium machining demands specialized tooling and carefully controlled cutting parameters, because the material has low thermal conductivity and a tendency to work-harden. At SHBD Metal, we use carbide and coated-carbide tools with optimized feed rates and high-performance coolant systems to minimize heat buildup and tool wear.
Our Swiss-type turning cells achieve ultra-tight tolerances as fine as ±0.002–0.005 mm on small-diameter titanium components, depending on part geometry and material grade. In addition, our 5-axis CNC milling centers produce complex aerospace- and medical-grade titanium geometries with high repeatability and dimensional stability.

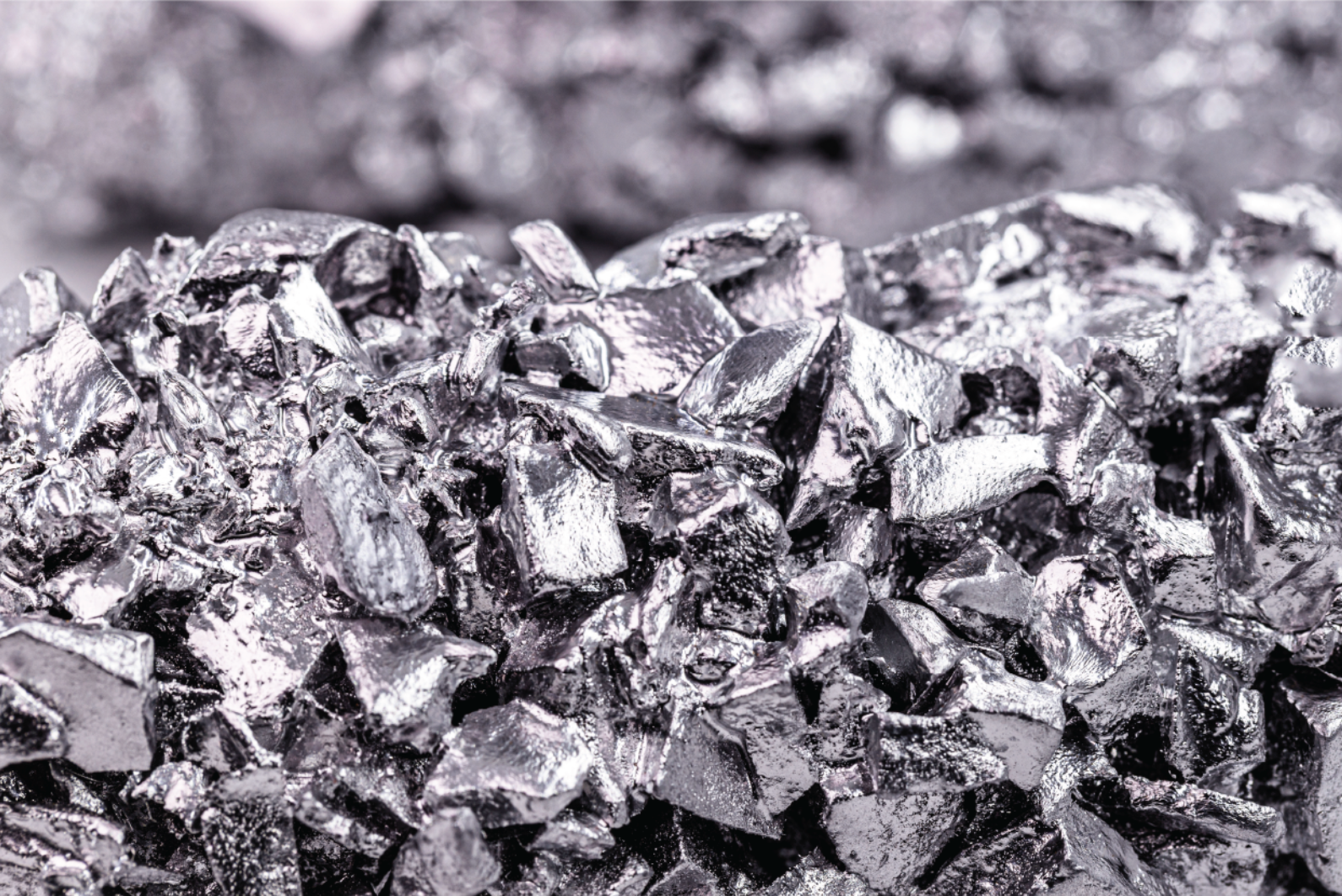

Titanium alloys offer excellent corrosion resistance compared to many alternative materials. Precise mixtures of alloys in different titanium grades and their high melting point and machinability allow producing titanium CNC machined parts with unique properties to suit every application. As the most biocompatible metal, titanium is used extensively in medical industries.
UNS R50250 • ASTM Grade 1
The most widely used pure titanium grade, prized for excellent corrosion resistance. Its low density, outstanding strength-to-weight ratio, and good formability make it a preferred choice across aerospace, automotive, medical, and consumer applications.
| Tensile Strength (Ultimate) | 240 MPa, 34800 psi |
| Yield Strength | 170 – 310 MPa, 24700 – 45000 psi |
| Shear Modulus | 45 GPa, 6530 ksi |
| Elongation at Break | 24% |
| Hardness (Brinell) | 120 |
| Density | 4.51 g/cc, 0.163 lb/in³ |
| Maximum Service Temp | 600 °C, 1100 °F |
UNS R50400 • ASTM Grade 2
The lowest-strength commercially pure grade, yet still robust for most engineering uses. It offers higher corrosion resistance than alloyed titanium grades and is commonly specified for chemical processing equipment and marine components.
| Tensile Strength (Ultimate) | 344 MPa, 49900 psi |
| Yield Strength | 275 – 410 MPa, 39900 – 59500 psi |
| Shear Modulus | 45 GPa, 6530 ksi |
| Elongation at Break | 20% |
| Hardness (Brinell) | 142 |
| Density | 4.51 g/cc, 0.163 lb/in³ |
| Maximum Service Temp | 1665 °C, 3030 °F |
UNS R50550 • ASTM Grade 3
Highly weldable with excellent corrosion resistance, making it a popular option for fabricators and manufacturers. It is used in medical implants, automotive parts, aircraft structures, and consumer goods.
| Tensile Strength (Ultimate) | 440 MPa, 63800 psi |
| Yield Strength | 377 – 520 MPa, 54700 – 75400 psi |
| Shear Modulus | 45 GPa, 6530 ksi |
| Elongation at Break | 18% |
| Hardness (Brinell) | 225 |
| Density | 4.5 g/cc, 0.163 lb/in³ |
| Maximum Service Temp | 1660 °C, 3020 °F |
UNS R50700 • ASTM Grade 4
Delivers excellent weldability, corrosion resistance, and fatigue strength, making it an ideal choice for aerospace components and other demanding structural applications.
| Tensile Strength (Ultimate) | 550 MPa, 79800 psi |
| Yield Strength | 480 – 552 MPa, 69600 – 80100 psi |
| Shear Modulus | 40 GPa, 5800 ksi |
| Elongation at Break | 15% |
| Hardness (Brinell) | 265 |
| Density | 4.51 g/cc, 0.163 lb/in³ |
| Maximum Service Temp | 1660 °C, 3020 °F |
UNS R56400 • ASTM Grade 5
The benchmark titanium alloy, combining strength, weldability, and formability. Excellent corrosion resistance and superior mechanical properties give it significantly higher strength than commercially pure titanium.
| Tensile Strength (Ultimate) | 950 MPa, 138000 psi |
| Yield Strength | 880 MPa, 128000 psi |
| Shear Modulus | 44 GPa, 6380 ksi |
| Elongation at Break | 14% |
| Hardness (Brinell) | 334 |
| Density | 4.43 g/cc, 0.16 lb/in³ |
| Maximum Service Temp | 1604 – 1660 °C, 2920 – 3020 °F |
UNS R56320 • ASTM Grade 9
A lightweight, strong, and corrosion-resistant alloy with a relatively high strength-to-weight ratio. It is highly resistant to oxidation and corrosion, which makes it ideal for use in a variety of demanding applications.
| Tensile Strength (Ultimate) | 620 MPa, 89900 psi |
| Yield Strength | 500 MPa, 72500 psi |
| Shear Modulus | 44.0 GPa, 6380 ksi |
| Elongation at Break | 15% |
| Hardness (Brinell) | 256 |
| Density | 4.48 g/cc, 0.162 lb/in³ |
| Maximum Service Temp | 1700 °C, 3090 °F |
One-off titanium prototypes or large-volume production. We can handle any size of order.
We can take your project from engineering design to delivery faster and cheaper than competitors.
Our engineers have extensive experience in various industries, so they can handle any project, no matter how challenging it seems.
Finished parts ship within 7 days (or quicker) with a 99% on-time delivery record.
Our aerospace and medical parts fabrication processes exceed the industry's highest standards. Advanced tools guarantee optimal precision and tight tolerances.
We provide a wide selection of aesthetic and functional coatings and finishes to meet any needs.
Select the right surface treatment for your titanium parts — from economical as-machined surfaces to decorative and protective coatings.
The most basic and economical CNC finish, often used in applications where the surface won't be visible, and appearance isn't a priority.
This process creates a uniform, matte texture by propelling fine abrasive particles onto the surface, removing imperfections and tool marks.
A durable, wear-resistant finish applied electrostatically and cured under heat, providing a uniform, protective coating in various colors.
An electrochemical process that enhances surface durability, corrosion resistance, and appearance, available in various colors with a smooth or matte finish.

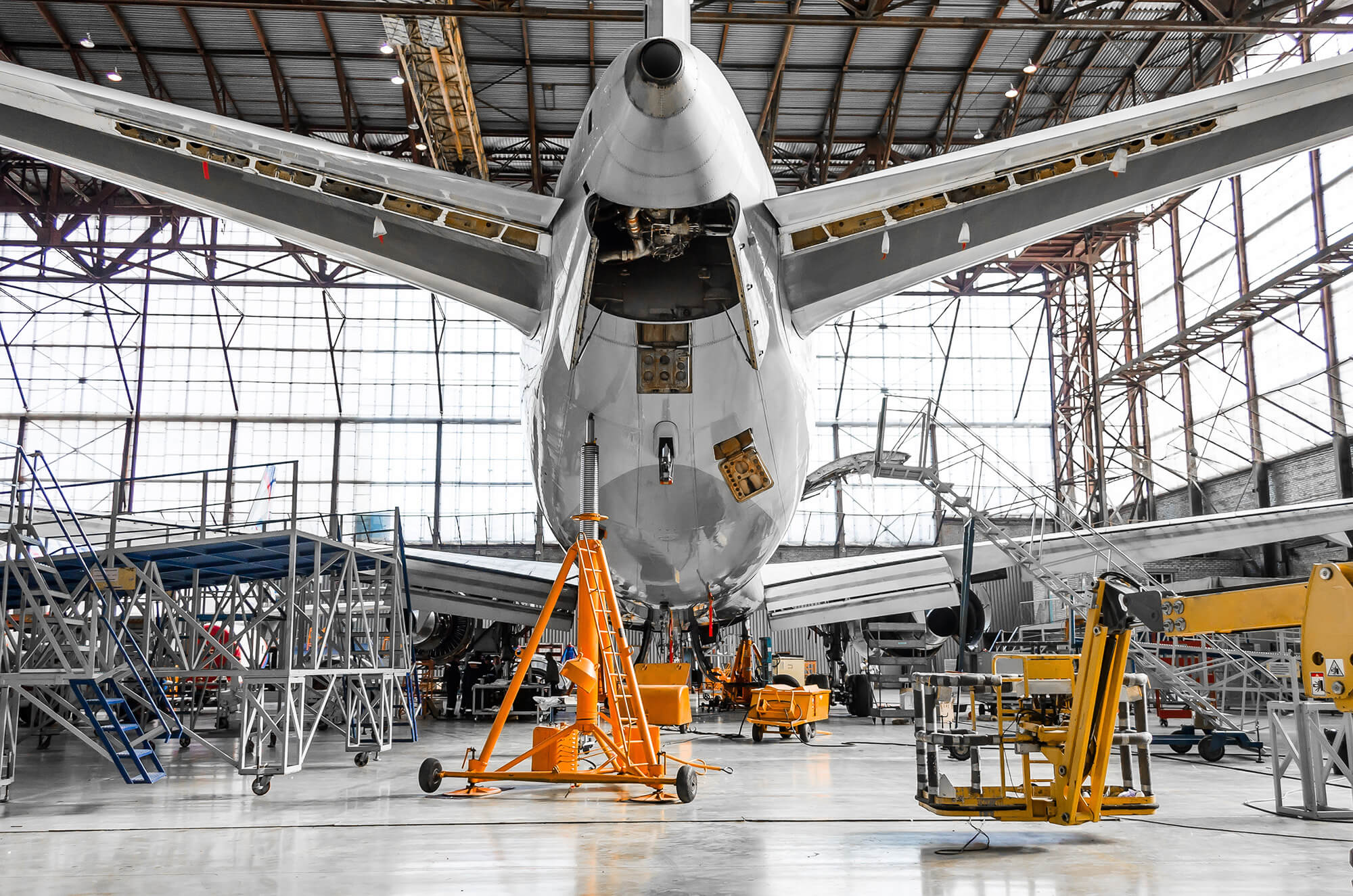

CNC machining services are an integral part of manufacturing in the aerospace industry. A high level of precision is essential for safety-critical aircraft components. Machinable parts include prototypes, fuel panels, landing gear, and engine mounts.
Aerospace Gallery Image — Titanium CNC Milling Prototype

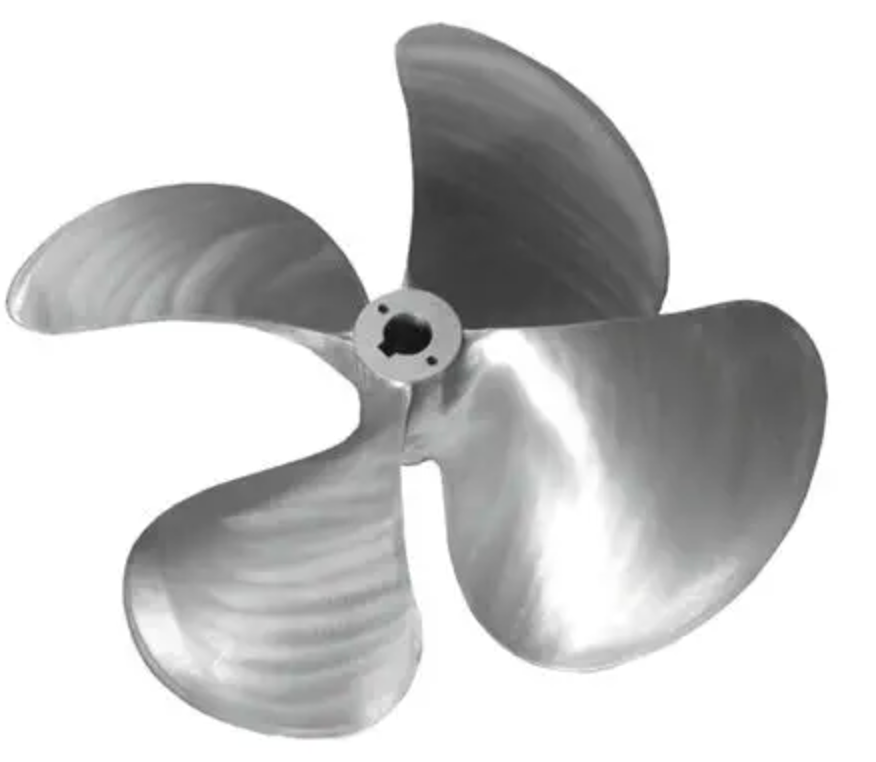

The marine industry requires very durable parts that must withstand harsh weather and environmental conditions. SHBD Metal offers a range of CNC titanium machining services that create highly durable components for commercial and recreational marine vessels, such as ship propellers, outboard motor parts, ship engine parts, and marine pumps.
Medical equipment and devices must be extremely precise and accurate to ensure patient safety. SHBD Metal can produce precision-engineered titanium components using CNC machining. Our services are used in various medical devices such as orthopedic titanium implants, dental products, and surgical tools.
