Bouchard Metal is a CNC milling supplier in Jiaxing, China, producing precision milled parts in metal and plastic from one-off prototypes to 100K+ unit programs. Send your CAD files for a quote with DFM feedback — 3, 4 and 5-axis machining, tolerances to ±0.01 mm and ISO 9001:2015 quality control.
STEP | STP | SLDPRT | IPT | PRT | SAT files
All uploads are secure and confidential.
From straightforward prototypes to highly intricate components, our advanced milling capabilities — including 3-axis, 4-axis, and 5-axis CNC machining — bring your designs to life with exceptional precision. By utilizing both vertical and horizontal milling configurations, we efficiently handle diverse geometries and part sizes while maintaining high dimensional accuracy and rapid turnaround.
3-Axis CNC milling is the most cost-effective way to get simple CNC prototypes and production parts done with accuracy demands.
Get Quote

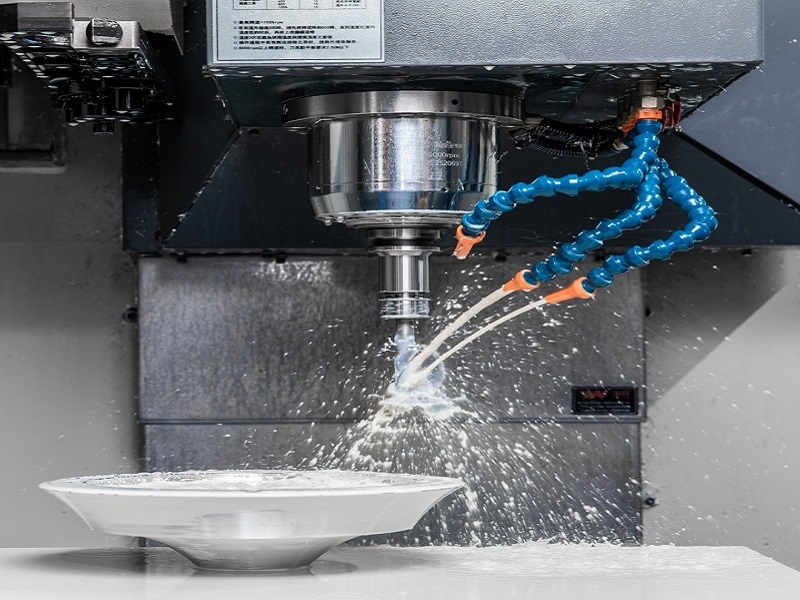

Besides less set-up compared with 3-axis milling, 4-axis milling is an exclusive option for the long parts with features on the side wall.
Get Quote

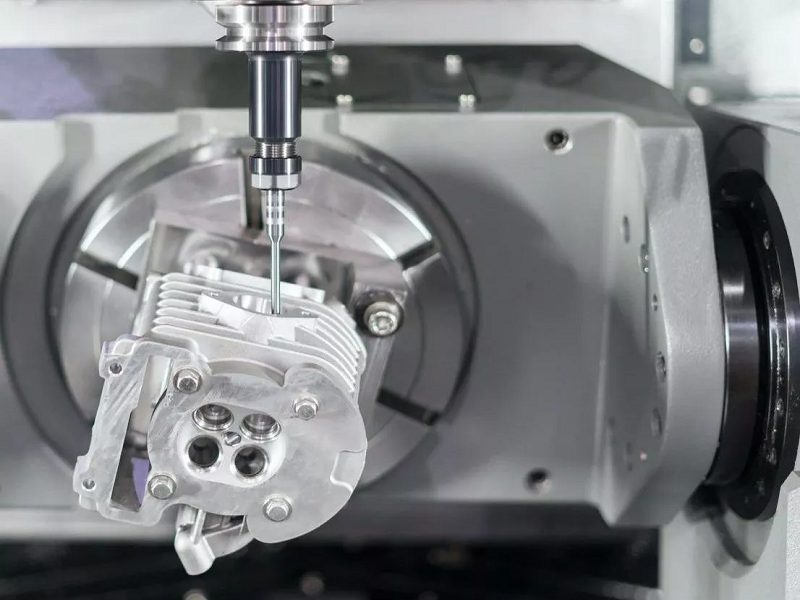

5-Axis CNC milling is the best solution for complex precision parts. The workpieces can be milled from multiple directions.
Get QuoteOur advanced CNC machining services offer the flexibility to match your design requirements and development schedules. We produce prototypes, test components, and low-volume production runs with the speed and precision essential for modern product development cycles.
With custom milling, SHBD Metal can rapidly produce high-precision CNC prototypes, functional prototype components, and intricate machined parts for various applications before full-scale production.
Our low-volume milling services deliver precision parts quickly and cost-effectively. With flexible production, rapid turnaround, and no tooling costs, we help you validate designs, bridge to full production, or fulfill small-batch orders with consistent quality and repeatability.
Learn About Low-Volume Manufacturing >
At SHBD Metal, we offer a comprehensive selection of surface finish options for CNC machined parts. From as-machined to decorative and protective finishes, our team can recommend the best surface treatment based on material, application, and budget. All finishing is performed in-house or through trusted partner facilities to ensure consistent quality.

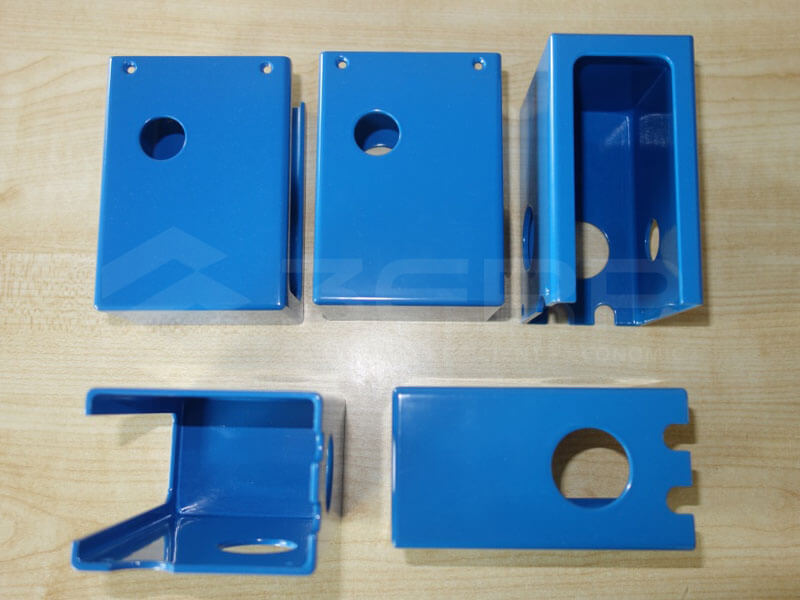

The default finish after CNC machining. Parts have visible tool marks with a surface roughness typically between Ra 1.6–3.2 μm. Suitable for functional internal components where aesthetics are not critical. Cost-effective and fastest turnaround.
Removes tool marks and rough areas, delivering smooth, glossy surfaces while maintaining dimensional accuracy. Perfect for customer-facing parts and high-end prototypes.

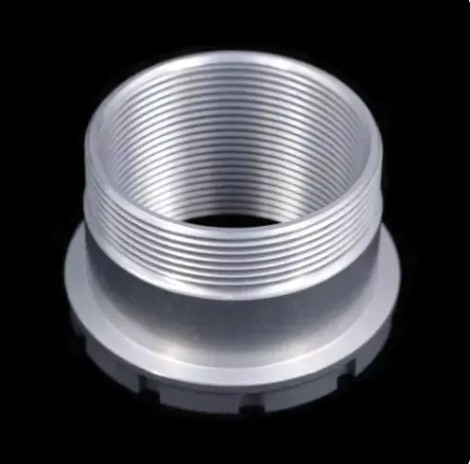

Sandblasting uses abrasive particles to create a textured finish, while bead blasting applies fine glass beads for a smooth, uniform matte appearance. Both processes eliminate imperfections and prepare surfaces for coatings.

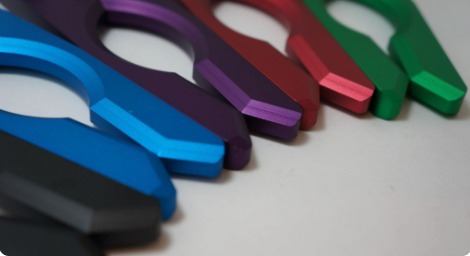

Applied to aluminum parts, anodizing is one of the most widely used surface finishes for CNC milled parts, significantly increasing corrosion resistance, surface hardness, and overall durability. This process offers a wide range of color and texture options while maintaining tight machining tolerances, making it ideal for precision CNC machining applications in aerospace, electronics, medical devices, and industrial equipment.

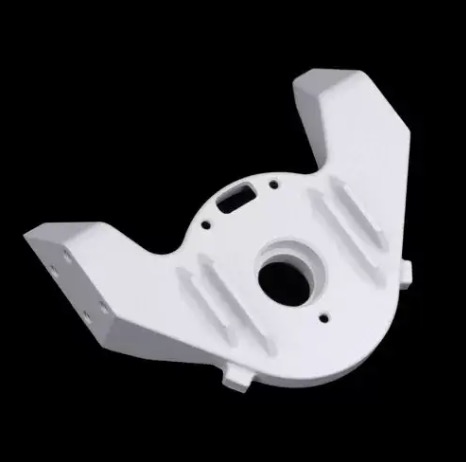

Electrostatically applied for even coverage, E-Coating provides excellent corrosion protection and consistent finishes across complex geometries.
We deliver CNC-milled parts with standard and high-precision tolerances, including tolerances down to ±0.01 mm for demanding applications. All parts are manufactured and inspected per your drawings and GD&T requirements to ensure consistent quality and fit. When 2D drawings are not available, general tolerances may follow ISO 2768, and GD&T definitions can be applied based on ASME Y14.5 standards where specified.
| Specification | Standard Precision | High Precision |
|---|---|---|
| Machining Tolerance (3-Axis) | ±0.05 mm to ±0.10 mm | Down to ±0.025 mm |
| Machining Tolerance (4-Axis) | ±0.025 mm to ±0.05 mm | Down to ±0.01–0.02 mm |
| Machining Tolerance (5-Axis) | ±0.015 mm to ±0.03 mm | Down to ±0.01 mm achievable |
| Hole-to-Hole Position Accuracy | ±0.03–0.08 mm | ±0.01–0.03 mm |
| Perpendicularity (per 100 mm) | 0.04–0.10 mm | 0.01–0.03 mm |
| Flatness (per 200 mm) | 0.03–0.10 mm | 0.01–0.03 mm |
| Surface Roughness (Ra) | Ra 1.6–3.2 μm | Down to Ra 0.4 μm (post-process) |
| Maximum Part Size | 4000 × 1500 × 600 mm | 1000 × 500 × 500 mm |
| Lead Time (Simple Parts) | 1–3 days | 2–5 days |
Tolerances, lead times, order sizes and materials for custom CNC milling — answered for buyers comparing suppliers.
Upload your CAD files and get an instant quote within 24 hours. Our engineering team will review your design and provide DFM feedback.
