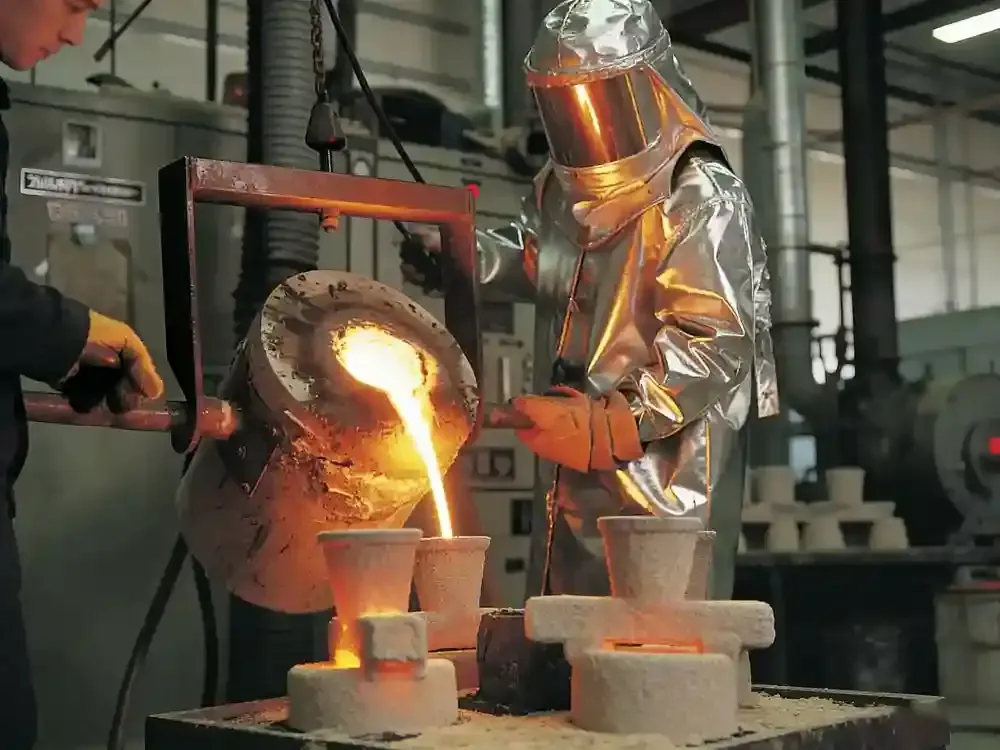

Metal casting is a versatile manufacturing process that shapes complex, high-strength metal parts by pouring molten metal into a precisely engineered mold. It excels at producing components with intricate geometries, internal cavities, and mechanical properties that are impractical to achieve through machining or fabrication alone.
At SHBD Metal, our online casting service is built for reliability. We address the classic casting challenges — porosity, shrinkage, dimensional drift, and inconsistent material properties — through sand, investment, and die casting capabilities supported by simulation-driven process optimization and strict quality protocols. The result is castings with structural integrity, consistent performance, and assembly-ready fit.
Streamline your supply chain with our digital workflow: upload your 3D model, receive an instant detailed quote and a comprehensive manufacturability review, and move into high-integrity cast production through a process defined by precision, transparency, and on-time delivery.

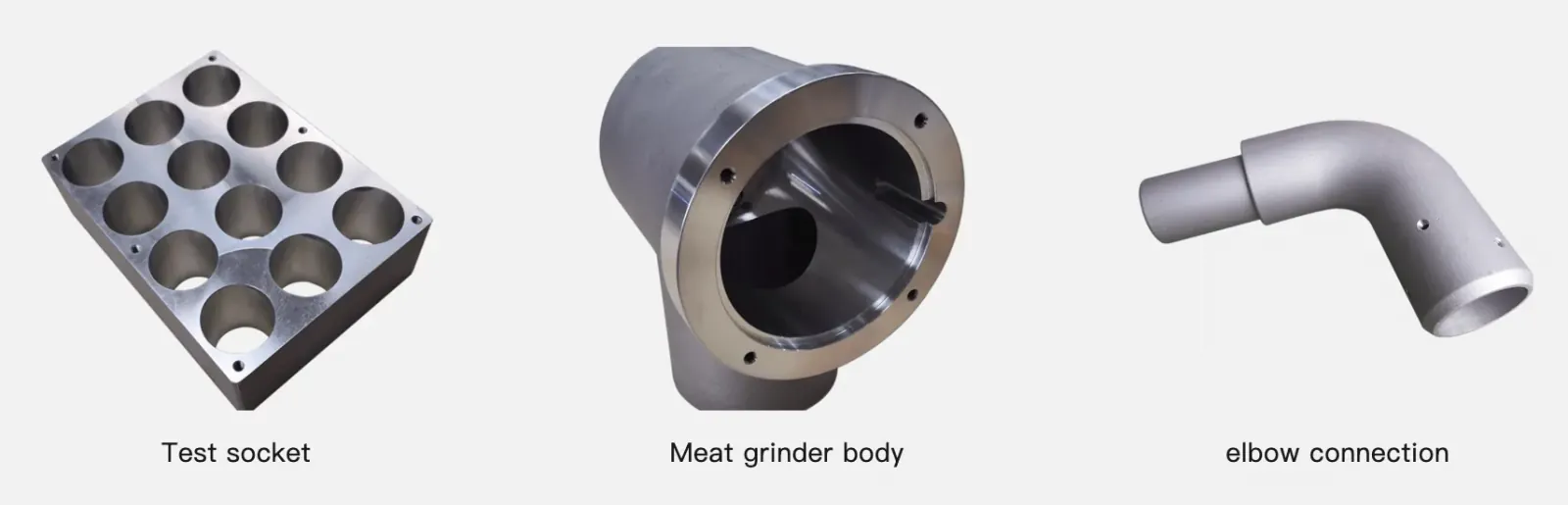

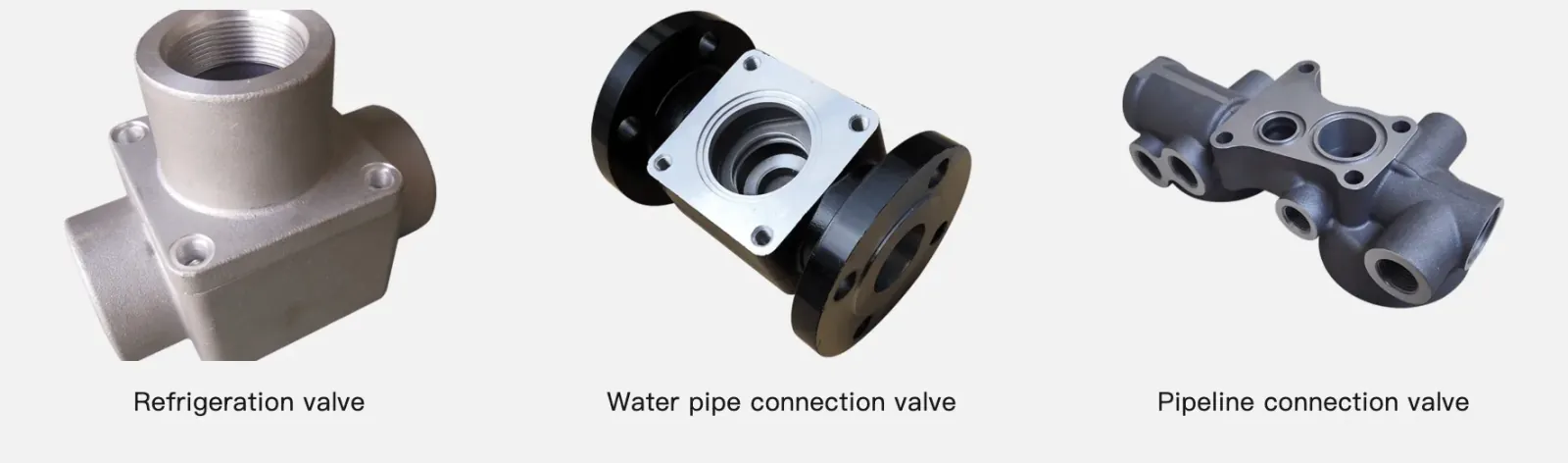

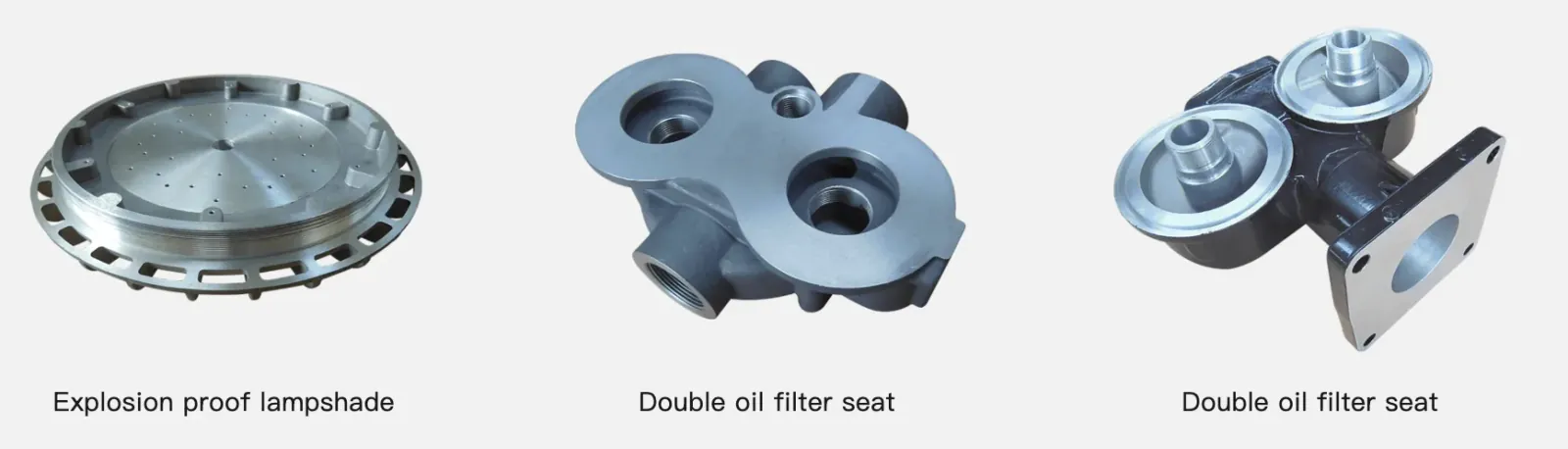

SHBD Metal delivers precision metal casting services from prototype to mass production, with strict quality control for high-integrity metal parts.
Ideal for mass production of complex, thin-walled parts. Achieves tight dimensional accuracy and smooth finishes, minimizing secondary machining for efficient production.
Produces high-precision parts with complex geometries and superior surface finishes. Ideal for components that are difficult to machine, with excellent dimensional control.
A versatile, cost-effective solution for large or heavy components. Offers flexible design and tooling for low to medium production volumes across diverse applications.
Delivers dense, high-integrity aluminum castings with reduced porosity. Improves mechanical properties for structural parts requiring superior strength and reliability.
Minimizes gas inclusions and defects in high-performance alloys. Ensures superior internal integrity for demanding aerospace, automotive, and medical applications.
High-productivity die casting for mass production. Delivers consistent dimensional repeatability and quality for large volumes of industrial metal components.
Our certified production system pairs advanced casting technology with disciplined quality control at every stage. From melt preparation and mold validation to final inspection, each step is monitored and documented — delivering precision components that consistently meet demanding performance and reliability specifications.
We conduct thorough design reviews and manufacturability analysis to optimize part geometry, ensuring seamless transition from concept to production-ready casting solutions.
Our engineers develop detailed process parameters including gating system design, pouring temperature control, and solidification analysis to prevent defects and ensure quality.
Precision mold designs are created with advanced CAD software, incorporating optimal parting lines, cooling systems, and ejection mechanisms for consistent performance.
Molds are crafted using 5-axis CNC machining and EDM technology, maintaining strict tolerances and surface finish requirements for dimensional stability.
We select appropriate alloy compositions and conduct material certification to ensure chemical composition meets specified mechanical property requirements.
Automated melting systems maintain precise temperature control, while robotic pouring ensures consistent fill rates and optimal metallurgical properties.
Advanced casting techniques with real-time monitoring enable controlled solidification, minimizing shrinkage and porosity while enhancing mechanical properties.
Customized heat treatment processes including solution treatment, aging, and quenching are applied to achieve required material characteristics and performance.
Each component undergoes dimensional inspection, X-ray analysis, pressure testing, and material verification to guarantee compliance with specifications.
Completed castings receive surface treatment, precision machining, protective packaging, and complete documentation for seamless integration into your production.
The casting process you select directly determines final part quality, unit cost, and production lead time. Drawing on 12+ years of industry experience, our engineers evaluate five core dimensions — material properties, part complexity, tolerance requirements, production volume, and budget — and benchmark six major processes in the comparison below to help you identify the most suitable casting solution quickly.
| Casting Process | Core Principle | Ideal Materials | Dimensional Accuracy | Surface Finish | Optimal Volume | Cost Grade | Key Advantage |
|---|---|---|---|---|---|---|---|
| High-Pressure Die Casting | High-pressure injection, rapid solidification | Zinc, Aluminum, Copper Alloys | CT4 - CT6 | Ra 1.6 - Ra 6.3 μm | High Volume (5,000+) | ★★★★★ | High efficiency, excellent precision & surface finish for thin walls |
| Low Pressure Die Casting | Low-pressure filling, minimal turbulence | Aluminum, Magnesium Alloys | CT5 - CT7 | Ra 3.2 - Ra 12.5 μm | Low to Medium (100 - 5,000) | ★★★★☆ | High density, superior mechanical properties, heat-treatable |
| Vacuum Casting | Molding in a vacuum environment | All Alloys | CT4 - CT6 | Ra 1.6 - Ra 3.2 μm | Prototype to Low (1 - 1,000) | ★★★☆☆ | Superior integrity, virtually porosity-free, for high-integrity parts |
| Investment Casting | Uses sacrificial wax pattern, precision ceramic mold | All Alloys, esp. Stainless Steels & Superalloys | CT4 - CT5 | Ra 1.6 - Ra 6.3 μm | Low to Medium (100 - 5,000) | ★★★★☆ | Unmatched complexity & detail, near-net-shape capability |
| Sand Casting | Expendable sand molds | Cast Iron, Cast Steel, Copper alloys | CT7 - CT9 | Ra 12.5 - Ra 25 μm | All Volumes (Extreme flexibility) | ★★☆☆☆ | Ideal for very large, heavy, or simple parts; low tooling cost |
| Die Casting (Standard) | High-pressure casting for precision parts | Zinc, Aluminum, Copper alloys | CT5 - CT6 | Ra 3.2 - Ra 6.3 μm | High Volume (5,000+) | ★★★★☆ | Excellent versatility and high productivity for precision components |
Upload your designs for expert manufacturing analysis and competitive pricing on precision metal casting solutions.
Get Instant QuoteOur post-casting CNC machining program achieves your most demanding tolerances and complex geometries. Strategic engineering planning determines which features are cast and which are precision-machined — improving part performance, cost efficiency, and lead time.
We ensure tight tolerances (down to ±0.025mm) and fine surface finishes (Ra 0.8μm or better). Every part undergoes CMM inspection and receives full certification, guaranteeing dimensional accuracy and ready-to-install performance for your assembly line.
Guided by the IATF 16949 automotive quality standard, our system is engineered to eradicate the root causes of failure in precision castings: internal porosity, dimensional deviation, and material inconsistency. A data-driven, 9-stage inspection protocol ensures full traceability and guarantees every component meets stringent performance and reliability specifications.
Spectrometer analysis verifies alloy chemistry and mechanical property compliance before any material enters production.
Real-time monitoring of temperature, composition, and degassing ensures optimal pouring quality for every shot.
Dimensional inspection and thermal analysis of molds prevent defects at the source, before production begins.
Pre-production calibration of all control systems, including pressure sensors and NC programs, keeps every machine in spec.
Continuous real-time monitoring of die temperature maintains strict adherence to the process window.
Full-cycle pressure profiling verifies filling, packing, and solidification integrity across the entire shot profile.
Visual and automated inspection detects cracks, cold shuts, and other surface imperfections with high reliability.
X-ray and ultrasonic inspection identify subsurface porosity or inclusions that could compromise performance.
Final CMM inspection confirms every critical feature matches drawing specifications before release.
End-to-end casting solutions, from simulation-driven mold engineering to finished component machining. Vertical integration reduces project timelines and eliminates the complexity of managing multiple suppliers.
Engineers perform expert Design for Manufacturability (DFM) analysis specific to casting, identifying optimal methods to prevent defects, with competitive, detailed quotes for cost-effective, fast-turnaround production.
Flexible manufacturing support from rapid prototyping to high-volume production runs. Scalable capacity and a diverse process portfolio align precisely with your project scale, timeline, and technical requirements.
With no MOQ constraints, we enable cost-effective production for prototypes and low-volume batches — reducing your initial investment risk and letting you scale orders efficiently with market demand.
All information and uploads are secure and confidential.
Get Your Instant Quote

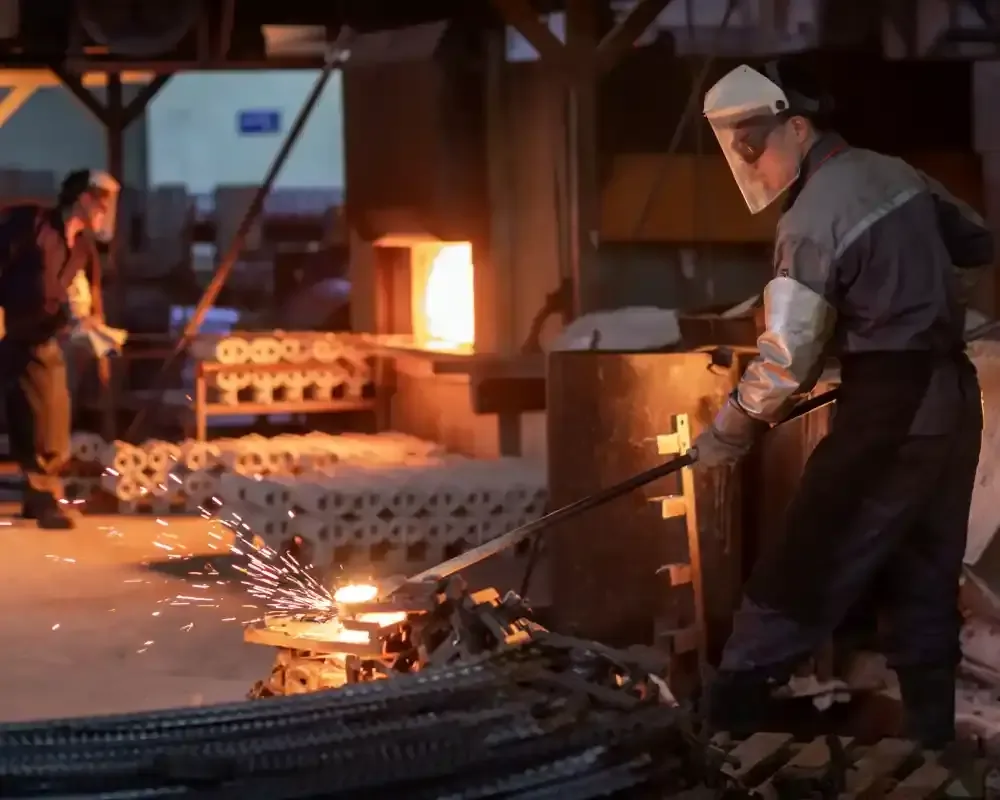

Metal casting directly transforms complex designs into high-performance, production-ready components. It solves the critical manufacturing challenges of geometric complexity, optimal material properties, and scalable cost efficiency that other processes often struggle to address.
Produce intricate, net-shape geometries — including internal features — that are difficult or costly to machine. Consolidate assemblies into single, robust components to reduce part count, weight, and assembly complexity.
Utilize a wide range of engineering alloys to meet specific strength, thermal, and corrosion-resistance needs. Achieve exceptional performance-to-weight ratios and durability for demanding applications.
Benefit from excellent economies of scale. Minimize material waste and reduce secondary machining through near-net-shape forming, offering a cost-effective path for both low and high volumes.

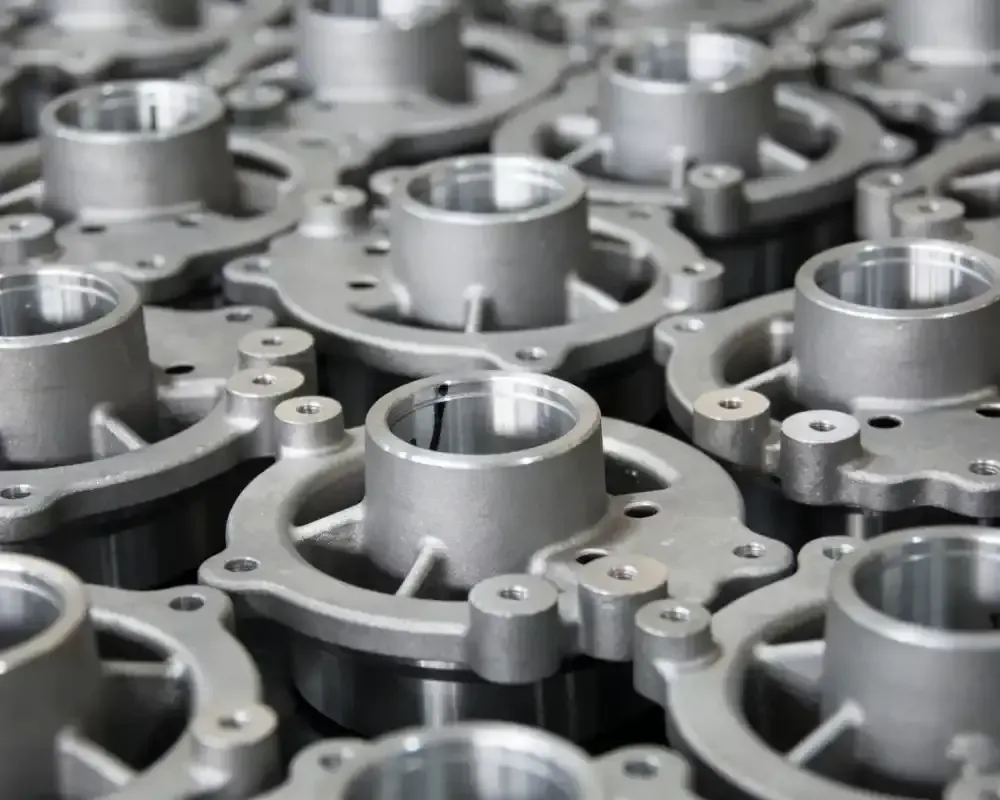

Metal casting provides the structural integrity, precision, and volume capability required for critical components across advanced industries.
Manufacture strong, lightweight engine blocks, structural frames, and turbine blades that meet rigorous safety, performance, and environmental endurance standards.
Produce large, wear-resistant parts such as pump housings and valve bodies for mining, construction, and power generation, built to withstand extreme operating conditions.
Create high-tolerance, biocompatible components for surgical tools and device housings, where absolute dimensional accuracy, surface finish, and material purity are essential.
