Precision high pressure die casting engineered for high-volume production of complex components that demand superior dimensional accuracy and rapid cycle times.
Get an instant quote today.
Get instant pricing, project lead times, and DFM feedback
Drop your CAD file here Upload your CAD file - contact us Choose FileSTEP | STP | SLDPRT | STL | OBJ | 3MF | IGES | X_T | X_B | PRT | SAT | JT files
File size: 15MB — All uploads are secure and confidential.
Trusted by Engineers and Purchasing Leaders at the World's Most Successful Companies
High Pressure Die Casting is a high-volume manufacturing process that produces complex, thin-walled metal parts with exceptional dimensional accuracy, superior surface finish, and rapid cycle times. Molten metal is injected under intense pressure into a precision steel die, enabling mass production of components that combine lightweight design with structural integrity.
We specialize in aluminum and magnesium high pressure die casting for industries requiring reliable, high-volume output. The process directly addresses critical production challenges: part-to-part consistency in complex geometries, minimized secondary machining, and lower total unit cost — all while maintaining the tight tolerances and cosmetic finishes demanded by automotive, consumer electronics, and industrial applications.

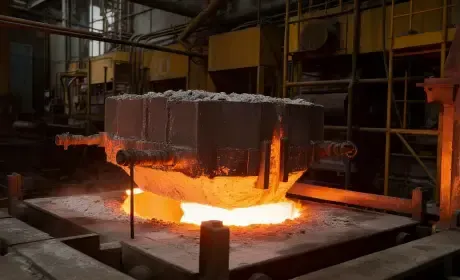

Get Instant QuoteHigh pressure die casting injects molten metal into a reusable steel mold under high pressure — ideal for mass-producing complex, thin-walled parts with high precision and strength.
We engineer the process for reliability and scale. Using precision-machined, temperature-controlled dies, we inject aluminum, magnesium, or zinc alloys at pressures of 600–1200 bar, ensuring complete filling of fine details before rapid solidification. Controlled parameters — injection speed, pressure, and thermal management — combined with advanced simulation, minimize defects and ensure consistent quality.
This approach tackles key production challenges: high throughput, consistency, and cost efficiency. It delivers lightweight, high-strength components with the accuracy and finish required for direct assembly.
We deploy three specialized high pressure die casting processes to meet high-volume manufacturing demands, delivering consistent quality, cost efficiency, and production scalability for industrial applications.
Ideal for zinc alloy and magnesium components, this process immerses the injection system in molten metal, enabling rapid cycling and exceptional efficiency. Perfect for mass production of small, complex parts such as connectors, housings, and hardware in consumer electronics, automotive interiors, and locking systems — with high repeatability and minimal downtime.
Get Quote

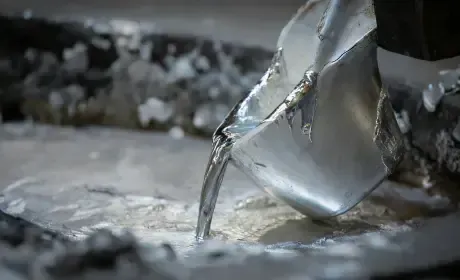

Engineered for aluminum and other high melting-point alloys, this method separates the injection chamber from the molten metal source, providing superior thermal stability and process control. Supports medium to large structural components with enhanced integrity — a preferred solution for automotive transmissions, machinery housings, and power tool bodies in continuous production environments.
Get Quote

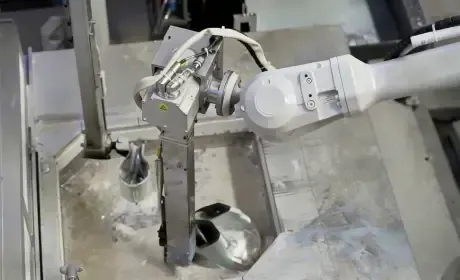

Utilizing semi-solid slurry injection, this advanced technique reduces gas entrapment and porosity while improving mechanical properties and enabling heat treatment. The optimal choice for high-performance, thin-walled parts requiring exceptional strength and pressure tightness — widely adopted in electric vehicle battery trays, structural body parts, and premium automotive and aerospace applications.
Get QuoteCore technical parameters for the three high-pressure casting mass production routes, tuned for zinc-aluminum-copper alloy castings. Values adjust per customer drawing, working conditions, and batch requirements — all parameters meet industry mass production standards.
CT4-CT6
Dimensional Accuracy
Ra1.6-Ra6.3μm
Surface Finish
≥ 1.5mm
Minimum Wall Thickness
15-100MPa
Injection Pressure
0.5-5m/s
Filling Speed
8-55 seconds/mold
Single Mold Cycle
0.01-25kg
Weight Range
200,000-800,000 pcs/month
Batch Capacity
| Casting Material | Melting Temperature(°C) | Tensile Strength(MPa) | Hardness (HB) | Adapted High Pressure Process | Application Scenario |
|---|---|---|---|---|---|
| Die-Casting Zinc Alloy (Zamak3/Zamak5) |
420-450 | ≥280 | 80-90 | Hot Chamber Casting | Mass Production of 3C Electronic Enclosures, Toy Parts, Hardware Small Parts |
| Die-Casting Aluminum Alloy (ADC12/A380) |
680-720 | ≥220 | 60-80 | Cold Chamber/Semi-Solid | Mass Production of Automotive Components, Smart Home, Hardware & Sanitary Ware |
| Die-Casting Copper Alloy (Hpb59-1) |
1100-1150 | ≥300 | 90-110 | Cold Chamber Casting | Mass Production of Industrial Accessories, Hydraulic Valve Bodies, Conductive Components |
| High-End Aluminum Alloy (6061/7075) |
700-730 | ≥350 | 100-120 | Semi-Solid Casting | Mass Production of New Energy Vehicle Core Components, High-End 3C Accessories |
Our high pressure die casting delivers complex, thin-walled components with exceptional accuracy and surface quality. The engineered process supports high-volume production of aluminum, magnesium, and zinc alloy parts — solving the critical challenges of precision, speed, and cost efficiency in automotive, consumer electronics, and industrial applications.
Customer CAD models undergo rigorous simulation analysis for fill pattern and solidification. Multi-cavity tool steel dies with conformal cooling ensure dimensional stability and extended tool life.
Advanced flow simulation defines optimal injection parameters, eliminating defects virtually before production begins. This reduces development time and ensures high-yield manufacturing.
Certified alloys are melted in controlled atmospheres and automatically metered into shot sleeves, ensuring consistent metallurgy and temperature for each production cycle.
Hydraulic plungers inject molten metal at 30-100 m/s and 600-1200+ bar pressure, completely filling intricate geometries before solidification initiates.
Intensification pressure maintains material density during solidification, creating pore-free microstructures essential for strength and pressure tightness.
Robotic systems extract castings with precision, maintaining process consistency and enabling lights-out manufacturing capabilities.
Automated trimming, deburring, and heat treatment processes deliver components ready for assembly or further machining operations.
Multi-stage validation includes in-line inspection, CMM verification, and non-destructive testing to guarantee all specifications are met.
High pressure die casting employs premium hardened tool steels to withstand extreme thermal cycling and injection pressures. The process is optimized for aluminum, magnesium, and zinc alloys selected for superior fluidity, fast solidification, and excellent mechanical properties. SHBD Metal supports industry-standard and custom materials to meet demanding performance and production requirements.
The industry standard for high-pressure aluminum and magnesium casting dies. It provides an optimal balance of high-temperature strength, toughness, and thermal fatigue resistance, ensuring extended mold life and consistent part quality under rapid cycling.
A refined, high-purity tool steel with improved thermal conductivity and toughness. It delivers more consistent performance at elevated temperatures, reducing thermal stress and extending service life in high-volume production environments.
A premium hot-work tool steel offering superior resistance to heat checking and thermal cracking. Its enhanced polishability ensures excellent surface finish reproduction, making it ideal for complex cores, cavities, and cosmetic components.
Engineered for high fluidity and rapid solidification, enabling the production of thin-walled, complex components with excellent strength-to-weight ratios and thermal conductivity.
The lightest structural alloys, offering exceptional strength-to-weight ratios and excellent EMI shielding for electronics and mobility applications.
Offer excellent dimensional stability, high impact strength, and superior as-cast surface finish for small, intricate components.
Material selection directly impacts part performance, manufacturability, and cost. The optimal alloy depends on your requirements for mechanical properties, corrosion resistance, weight, and production volume. For a data-driven recommendation that balances performance with cost, contact SHBD Metal engineers.
Engineered for the high-volume production environment, SHBD Metal delivers precise, consistent, and scalable surface finishing solutions. Our processes are optimized to enhance part performance, ensure batch-to-batch uniformity, and meet the stringent aesthetic and protective demands of global supply chains.
The most cost-effective finish, preserving the high-quality surface directly from the precision die. Ideal for structural components where appearance is secondary to performance, such as internal brackets, housings, and mechanical supports, reducing time and cost.
Creates a hard, wear-resistant, and corrosion-resistant oxide layer on aluminum and magnesium parts. Available in a spectrum of colors for branding and identification, ideal for consumer electronics, automotive trim, and architectural components requiring durability and aesthetics.
A rapid chemical treatment that forms a thin, conductive layer with excellent corrosion resistance and improved paint adhesion. This essential pre-treatment is standard for automotive, aerospace, and military components prior to painting or powder coating.
Provides a uniform, high-corrosion-resistant organic coating with exceptional edge coverage and penetration into complex geometries. The preferred choice for automotive chassis parts, electrical enclosures, and components requiring complete, durable protection.
Delivers superior decorative finishes, brand-specific colors, and textured effects with excellent environmental resistance. Automated lines ensure consistent, high-quality finishes for consumer products, outdoor equipment, and industrial machinery, enhancing both appearance and longevity.
Cleans and prepares surfaces by removing minor imperfections and creating a uniform matte or textured profile. This critical pre-treatment significantly improves coating adhesion and is essential for parts requiring subsequent painting, bonding, or plating.
High pressure die casting is engineered for high-volume production of complex, thin-walled components with exceptional dimensional repeatability, superior surface finish, and high strength-to-weight ratios. We deliver precision solutions that address critical challenges in cost, speed, and performance for mass production.

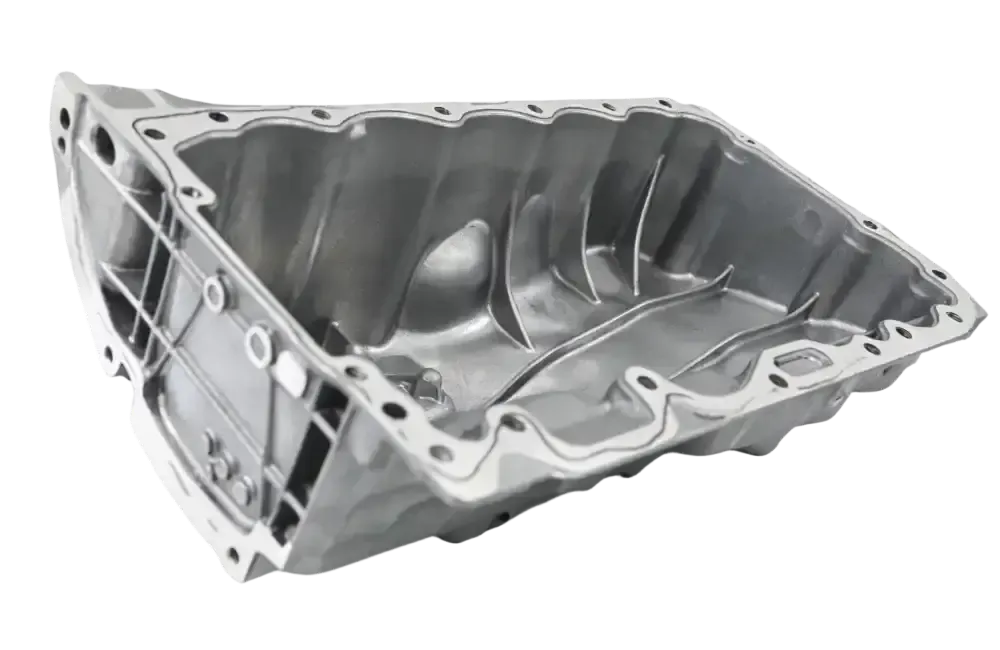

Engine blocks, transmission cases, and structural body parts requiring tight tolerances, high integrity, and cost efficiency for high-volume manufacturing.

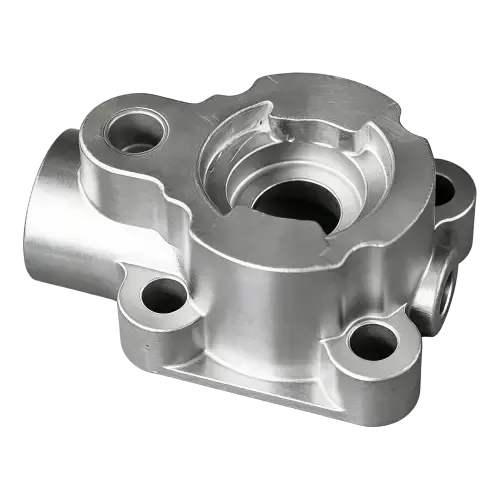

Pump housings, valve bodies, and gearbox components that must withstand wear, pressure, and harsh environments while maintaining production consistency.
Device enclosures, heat sinks, and internal frames demanding thin walls, EMI shielding, excellent cosmetic finish, and rapid production scalability.
Lightweight brackets, avionics housings, and instrumentation components requiring precision, reliability, and performance under demanding operating conditions.
Durable housings, motor end-frames, and structural parts designed for impact resistance, thermal management, and long-term reliability in consumer and industrial applications.
