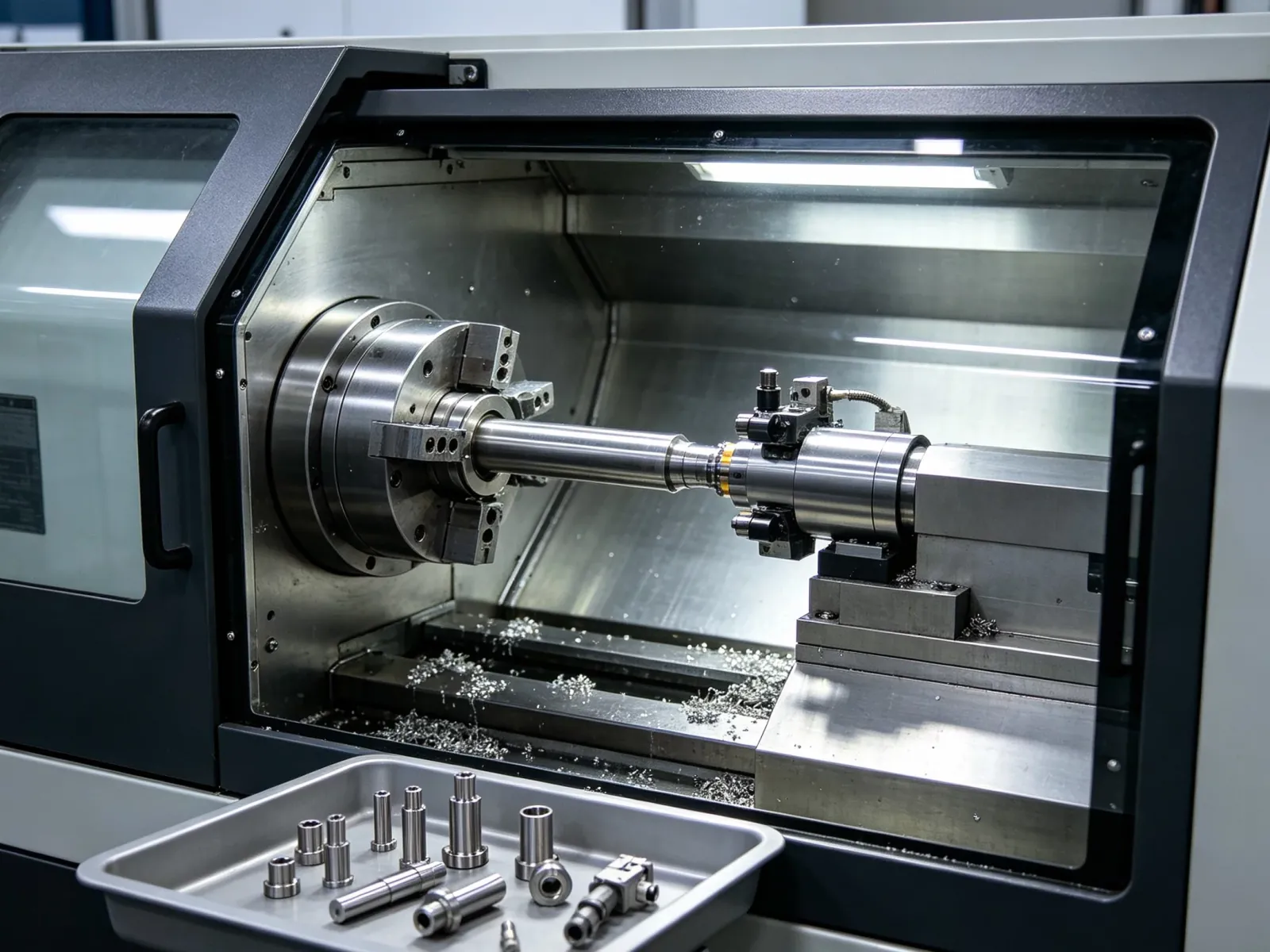

Get complex Swiss machined parts with shorter lead times and fewer production handoffs. By completing multiple features in a single machining cycle, we help maintain critical feature alignment and deliver more consistent parts across your order.
Get Instant Quote
Choose the production approach that fits your current stage, whether you need a small batch to verify the design or repeat production with controlled part-to-part consistency.
Get functional parts in production-grade materials to test fit, assembly, and performance before placing a larger order. You can verify critical dimensions, identify design issues, and make changes without committing to volume production.
Start Your Prototype →

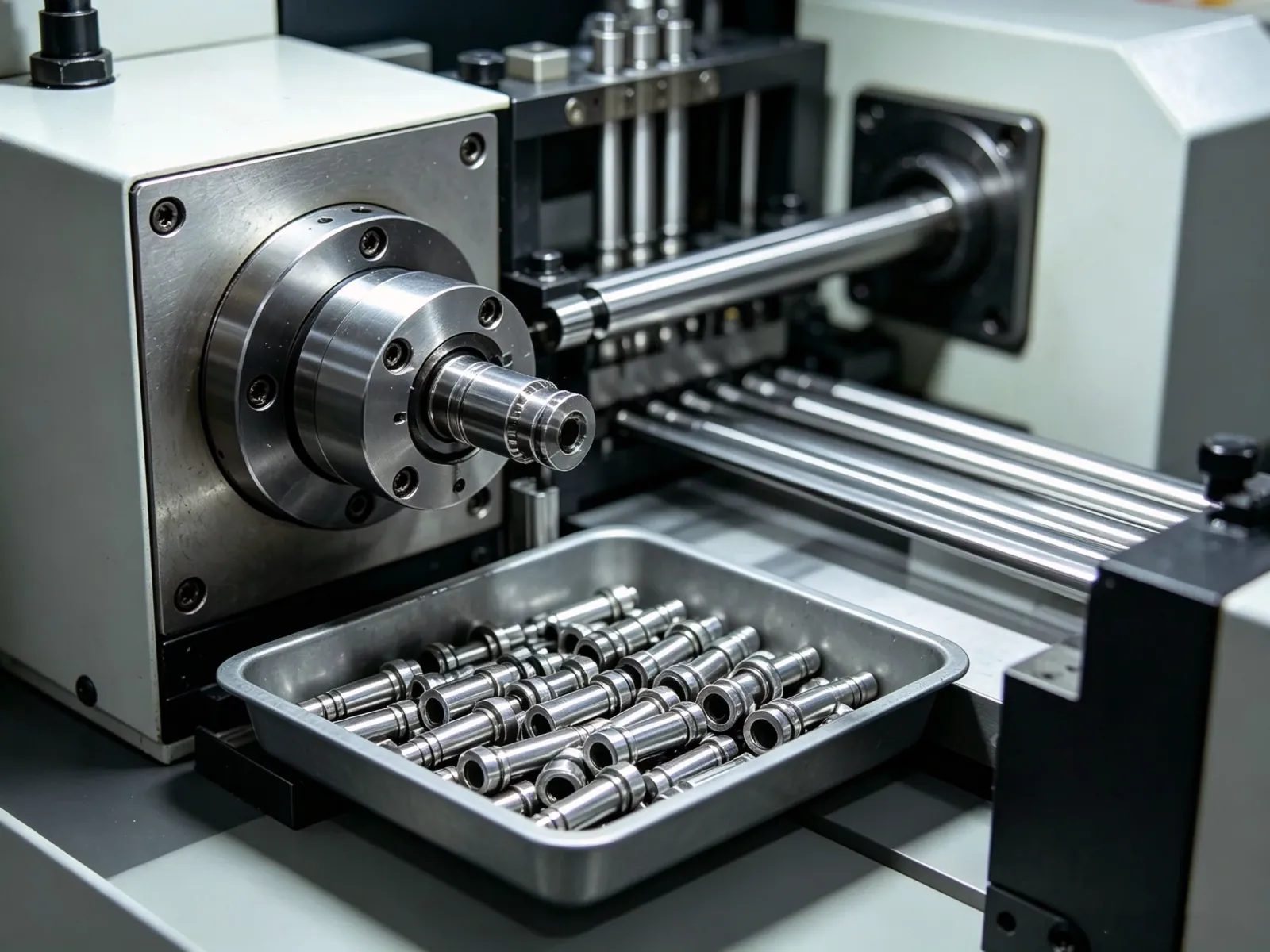

Order hundreds or thousands of small, complex parts with consistent dimensions and a lower cost per part. Controlled production settings and automated bar feeding help approved parts remain consistent across the full order and future repeat batches.
Start Volume Production →| Capability | Specification |
|---|---|
| Bar Diameter Range | Ø1 mm to Ø32 mm |
| Maximum Part Length | Up to 300 mm |
| Machine Configuration | 5- to 11-axis Swiss CNC machines |
| Spindle Configuration | Main spindle and sub-spindle |
| Live Tooling | Axial and radial drilling, milling, slotting, and threading |
| Maximum Spindle Speed | Up to 20,000 RPM |
| Typical Dimensional Tolerance | ±0.01 mm |
| Tightest Achievable Tolerance | Down to ±0.005 mm, subject to drawing review |
| Minimum Machined Feature | 0.5 mm |
| Surface Roughness | As low as Ra 0.8 μm |
We machine a wide range of metals and engineering plastics, using material-specific tooling, cutting parameters, and process controls for each grade. From raw bar stock to finished components, we control dimensions, surface quality, and material performance to deliver parts that meet your requirements.
Aluminum is light, strong, and easy to machine, which makes it a great fit for applications such as aerospace and automotive parts. Its corrosion resistance also makes it attractive for outdoor projects and structural components.
Color:
Subtypes:
Available Finish:
Price:
Lead Time:
View More →We turn demanding designs into finished Swiss CNC machined parts that meet your drawing requirements. Even when a part has a difficult structure or closely related critical features, we focus on dimensional accuracy, functional fit, and surface quality — so you receive reliable parts ready for inspection and assembly.
Long, small-diameter parts with controlled straightness, concentricity, and surface finish.
Thin-walled cylindrical parts with precise bores, outside diameters, grooves, and shoulders.
Swiss screw machined parts with external or internal threads, drive features, cross holes, and custom heads.
Small conductive components with fine threads, slots, flats, and closely positioned connection features.
Parts combining internal flow paths, sealing surfaces, threads, tapers, and side ports.
Custom parts requiring several turning and cross-machining operations within a single production cycle.
Slender and miniature parts are sensitive to cutting pressure, heat, vibration, and tool wear. We adjust the support, tooling, cutting parameters, and inspection plan around each part’s geometry to prevent these risks from affecting the finished components.

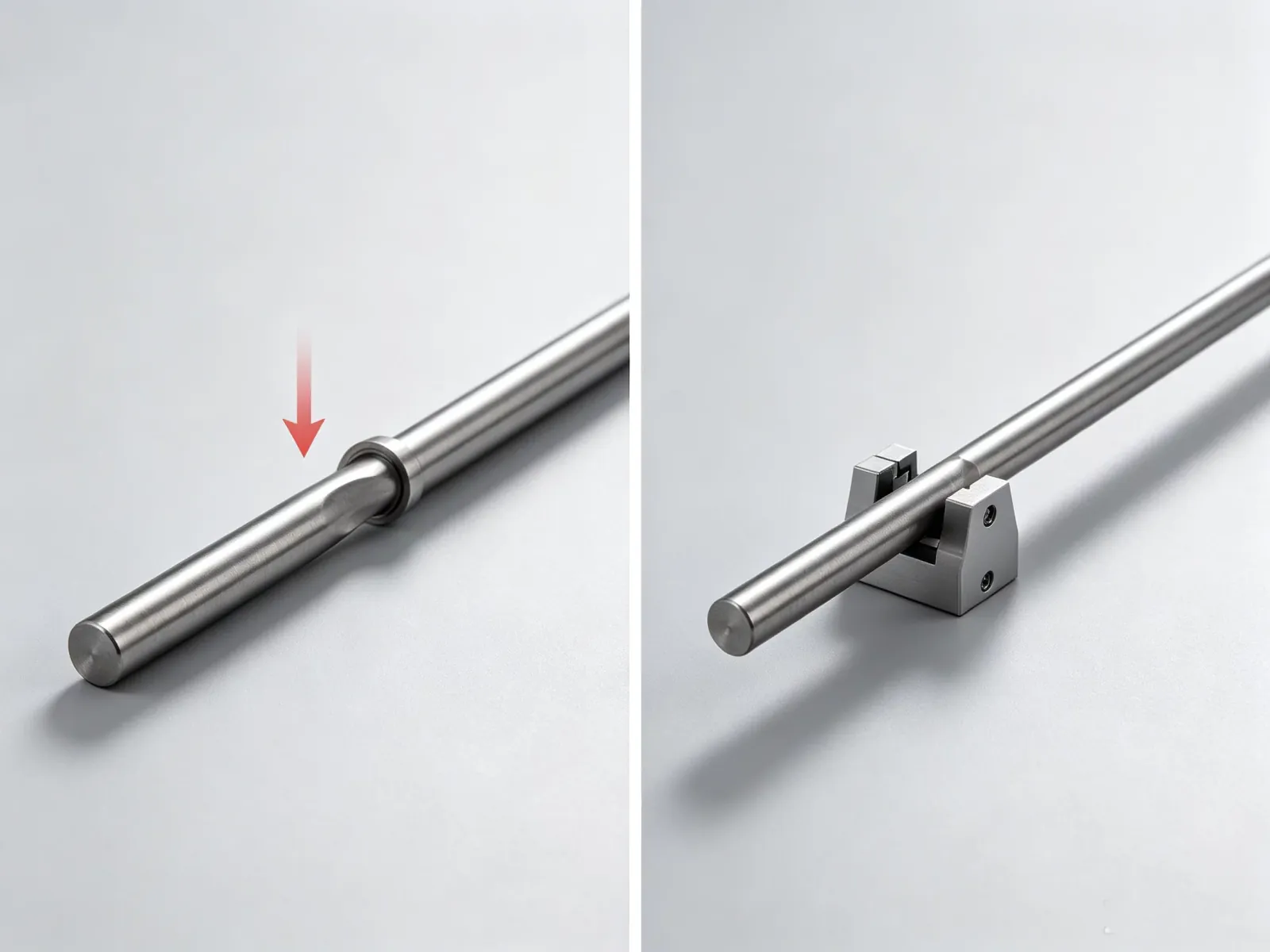

Part Bending or Deflection

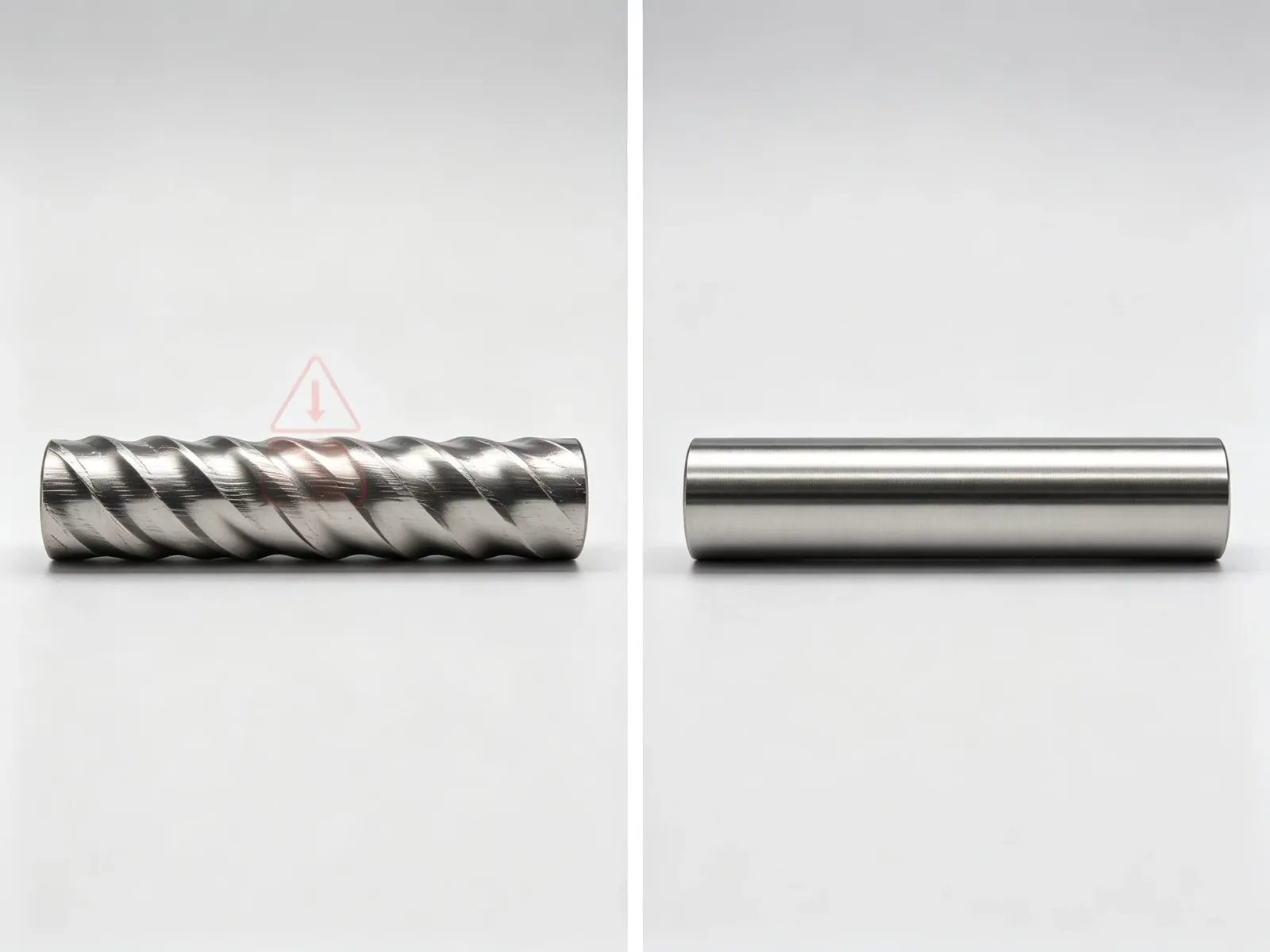

Vibration and Poor Surface Finish

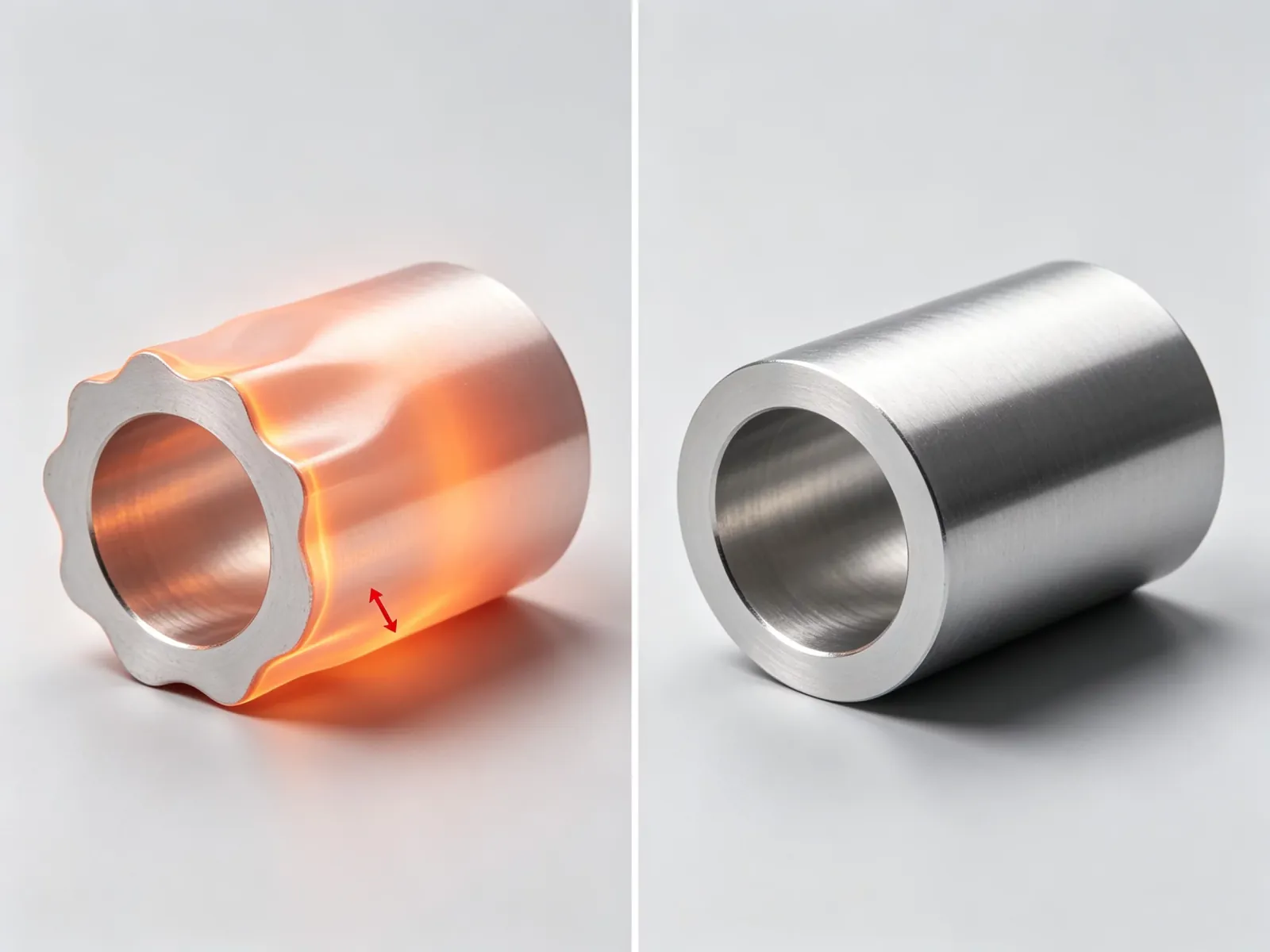

Heat Distortion in Thin Sections

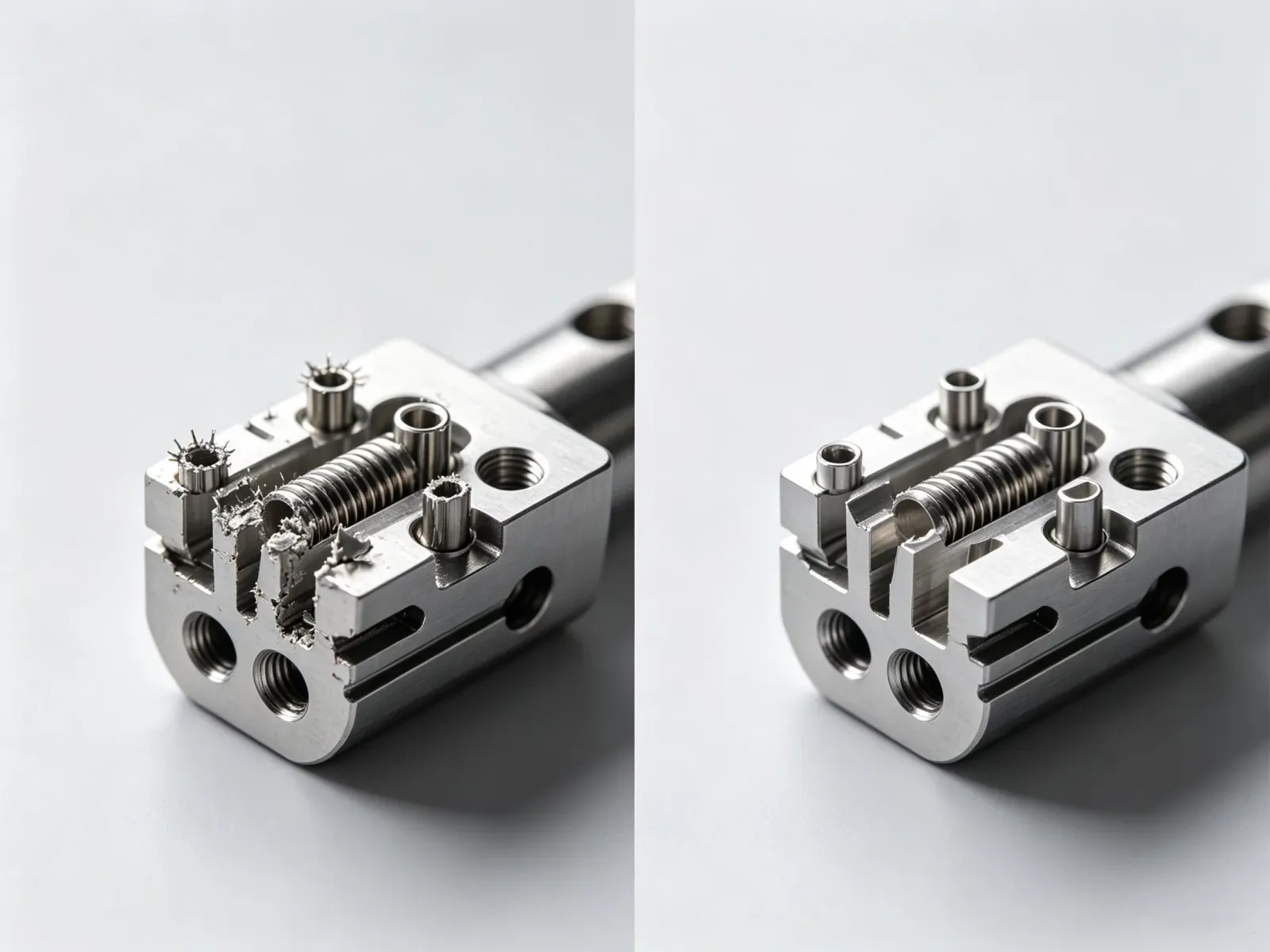

Burrs and Damaged Small FeaturesLong, narrow parts may bend under cutting force, causing diameter variation or poor straightness. We support the material close to the cutting point and control cutting loads to keep the part stable throughout machining.
Get Quote NowSwiss CNC machining is best suited to small-diameter, slender, or feature-rich parts that are difficult to produce consistently with conventional turning. Use the guide below to determine which process better fits your part.
