Pump housings are the structural backbone of any pumping system, enclosing the impeller and directing fluid flow while withstanding internal pressure, corrosive media, and mechanical stress.
When housings must handle aggressive fluids, high temperatures, or sanitary conditions, stainless steel becomes the material of choice, and investment casting emerges as the preferred manufacturing route for achieving complex geometries with exceptional precision and surface quality.
Stainless steel pump housings produced through investment casting combine corrosion resistance, mechanical strength, dimensional accuracy, and design freedom that is hard to match with other manufacturing methods. From chemical processing and marine applications to food and pharmaceutical industries, investment-cast stainless steel pump housings deliver reliable, long-service-life solutions for demanding fluid handling applications.
1. What Is a Stainless Steel Pump Housing?

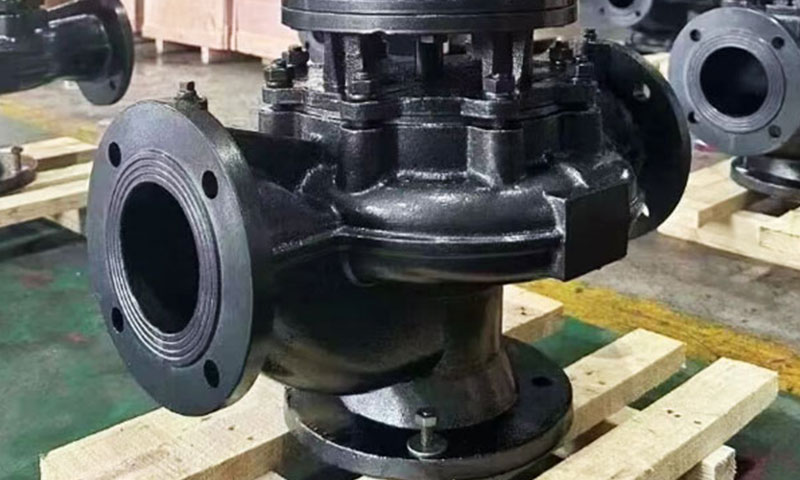

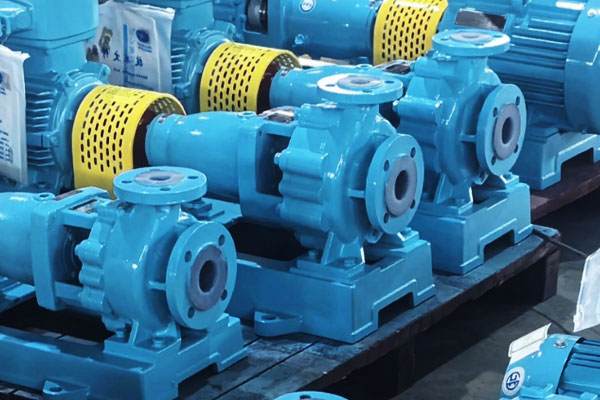

A stainless steel pump housing is the primary external structural component of a pump assembly. It encloses and protects internal rotating components while controlling the movement of the pumped fluid. It is also commonly called a pump casing, pump body, or — in centrifugal pump designs — a volute casing.
As one of the most critical pressure-containing components in a pump system, the housing maintains structural stability under continuous operation. It must withstand internal fluid pressure, hydraulic impact, vibration, mechanical loads, temperature variations, and long-term exposure to potentially aggressive media.
Unlike simple protective covers, a pump housing directly influences pump efficiency, reliability, and service life. Its internal geometry determines how effectively the kinetic energy generated by the impeller is converted into pressure energy, while its material characteristics determine resistance to corrosion, erosion, and mechanical failure. Stainless steel pump housings are widely used in demanding industrial environments because the alloy combines excellent corrosion resistance with high mechanical strength — making it suitable for chemicals, seawater, food products, pharmaceuticals, and high-purity fluids.
Main Functions of a Stainless Steel Pump Housing
| Function | Description |
|---|---|
| Flow direction | Guides fluid from the impeller to the discharge outlet with minimal turbulence. |
| Pressure containment | Withstands internal pressure generated by the pump. |
| Impeller support | Provides a mounting interface for the impeller shaft and bearings. |
| Sealing surface | Provides mounting surfaces for seals, gaskets, and connections. |
| Structural integrity | Resists external loads, vibration, and thermal expansion. |
| Corrosion protection | Protects internal components from corrosive media. |
Key Design Features of a Pump Housing
| Feature | Description | Importance |
|---|---|---|
| Volute chamber | The spiral-shaped passage that converts velocity to pressure. | Determines pump efficiency and performance. |
| Suction inlet | Fluid entry point. | Must be smooth to minimise turbulence. |
| Discharge outlet | Fluid exit point. | Pressure-containing; must withstand maximum operating pressure. |
| Mounting feet | Structural supports for the pump. | Must be rigid to maintain alignment. |
| Flange connections | Interfaces with piping. | Must be leak-tight and dimensionally accurate. |
| Bearing housing | Support for the pump shaft. | Requires precise alignment. |
| Drain plugs | For maintenance and cleaning. | Essential for hygiene and maintenance. |
2. Why Is Investment Casting Ideal for Stainless Steel Pump Housings?
Pump housing designs often involve complex internal flow channels, curved volute structures, precision sealing areas, and irregular external geometries that are difficult to manufacture economically with traditional fabrication. Among available technologies, investment casting (lost wax casting) provides an excellent balance of design flexibility, dimensional accuracy, material performance, and production efficiency.
Complex Geometry Capability for Hydraulic Optimization
The internal geometry of a pump housing directly affects hydraulic performance. Components such as volute chambers, curved passages, inlet channels, and discharge outlets require smooth, accurate shapes to minimize turbulence and improve energy efficiency. Investment casting reproduces highly complex geometries that would be difficult or costly to achieve through conventional machining or welded fabrication. Because the wax pattern is formed directly from the designed geometry, engineers can optimize internal flow passages, wall thickness distribution, reinforcement structures, connection configurations, and compact housing designs.
Near-Net-Shape Manufacturing Reduces Material Waste
Stainless steel is a valuable engineering material, and efficient material utilization matters. Machining from solid blocks removes large amounts of material, while welded fabrication requires multiple plates and forming operations. Investment casting produces components much closer to final geometry, reducing raw material consumption, machining time, production steps, and manufacturing cost — a significant advantage for complex housings.
Excellent Dimensional Accuracy and Surface Quality
Pump housings must integrate with impellers, shafts, mechanical seals, and piping. Investment casting delivers excellent dimensional accuracy thanks to high-precision wax patterns and ceramic molds, enabling accurate flange dimensions, consistent wall thickness, precise sealing surfaces, and stable assembly compatibility. The process also produces smoother surfaces than conventional sand casting, reducing machining requirements — especially beneficial for fluid-contact surfaces where roughness affects flow efficiency.
Superior Structural Integrity vs Fabricated Housings
A welded housing contains weld seams that can become weak points under cyclic loading, vibration, or corrosive conditions. Investment casting creates a continuous metal structure without welded joints, offering improved pressure resistance, reduced stress concentration, better fatigue performance, and more uniform mechanical properties — highly valuable for chemical processing, marine systems, and industrial fluid transport.
Ideal Compatibility with Stainless Steel Alloys
A wide range of stainless steel grades can be investment cast, letting engineers match material to service conditions. Common casting alloys include CF8 (cast equivalent of 304), CF8M (cast equivalent of 316), CF3 and CF3M for improved weld corrosion resistance, duplex stainless steels for high strength and corrosion resistance, and super duplex grades for severe environments.
Suitable for Prototypes and Medium-to-High Volume Production
Investment casting suits both mass production and customized low-volume components. Prototypes validate complex housing designs before large-scale production, while commercial production offers stable repeatability, consistent quality, and reduced assembly complexity — ideal for OEM pump manufacturers and industrial equipment suppliers.

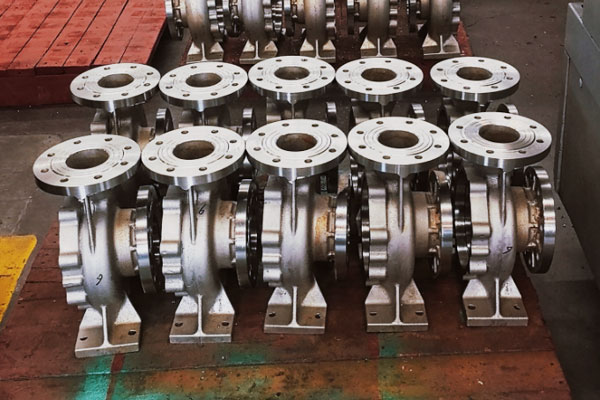

3. Investment Casting Process for Stainless Steel Pump Housings
The process runs through multiple carefully controlled stages, from pattern production to final inspection, each affecting dimensional accuracy, surface quality, and mechanical performance.
| Stage | Step | Key Detail |
|---|---|---|
| 1 | Pattern production | Wax injection into a precision die replicating the pump housing geometry, including the volute chamber. |
| 2 | Core assembly | Ceramic or soluble wax cores for internal flow passages and undercuts. |
| 3 | Tree assembly | Multiple wax patterns attached to a central sprue. |
| 4 | Shell building | 6–10 layers of ceramic slurry (silica sol) with stucco (zircon/alumina). |
| 5 | Dewaxing | Steam autoclave melts the wax; the shell remains hollow. |
| 6 | Shell firing | Fired at 900–1100°C to strengthen the ceramic and remove volatiles. |
| 7 | Stainless steel melting | Induction melting at 1550–1650°C. |
| 8 | Pouring | Molten steel poured into the pre-heated shell. |
| 9 | Cooling & knockout | Controlled cooling; shell removed by vibration or water jet. |
| 10 | Cut-off & finishing | Gates and risers cut; grinding, shot blasting, tumbling. |
| 11 | Heat treatment | Solution annealing (1040–1100°C) with water quench. |
| 12 | Inspection & testing | Visual, dimensional, NDT (X-ray, dye penetrant), hydrostatic pressure test. |
Quality Assurance
| QA Element | Method | Acceptance Criteria |
|---|---|---|
| Chemical analysis | Spectrometry | Meets ASTM A351/A743 specification. |
| Mechanical testing | Tensile, hardness | Meets grade requirements. |
| NDT | Dye penetrant (PT), radiography (RT) | No cracks or porosity exceeding specification. |
| Dimensional inspection | CMM, gauges | Meets drawing tolerances. |
| Pressure testing | Hydrostatic (1.5× rated pressure) | No leakage; no deformation. |
| Surface finish | Visual, profilometer | Ra ≤6.3 µm (or as specified). |
4. Surface Treatment and Finishing Options
Additional finishing is often required for pumps operating in corrosive, hygienic, or high-performance environments.
Machining and Precision Surface Finishing
Investment-cast housings typically undergo secondary machining on flange faces, sealing surfaces, bearing seats, shaft openings, and mounting interfaces. CNC machining ensures precise dimensional control and reliable sealing between the housing and other components. Common operations include CNC milling for flat mounting surfaces and flanges, CNC turning for circular openings and precision bores, drilling and tapping for bolt holes, and grinding or lapping for high-precision sealing areas.
Electropolishing for Corrosion Resistance and Hygiene
Electropolishing is widely used for pump housings in food processing, pharmaceuticals, biotechnology, and semiconductor manufacturing. The controlled electrochemical process removes microscopic surface irregularities and contaminants, producing a smoother, more passive surface with improved corrosion resistance, reduced bacterial adhesion, easier cleaning, and lower contamination risk.
Passivation Treatment
Passivation removes free iron particles and surface contaminants generated during manufacturing, allowing the natural chromium-rich oxide layer to regenerate. A properly passivated surface resists localized corrosion and performs better in chloride-containing environments — especially valuable for 304, 316, and duplex grades in marine and chemical applications.
Surface Coatings and Specialized Treatments
| Surface Treatment | Main Function | Typical Applications |
|---|---|---|
| Ceramic coating | High-temperature and wear resistance | Chemical pumps, abrasive media |
| PTFE coating | Low friction and chemical resistance | Corrosive fluid applications |
| PVD coating | Enhanced hardness and surface durability | Precision industrial components |
| Shot blasting | Surface cleaning and uniform appearance | General industrial pump housings |
| Polishing | Improved appearance and reduced roughness | Food, pharmaceutical equipment |
5. Stainless Steel Grades for Custom Pump Housings
Grade selection is one of the most important engineering decisions in pump housing design. For investment-cast housings, casting grades are typically specified according to ASTM A743, ASTM A744, and ASTM A351.
| ASTM Casting Grade | Equivalent Wrought Grade | Microstructure | Typical Tensile Strength (MPa) | Key Characteristics | Typical Applications |
|---|---|---|---|---|---|
| CF8 | 304 | Austenitic | ≥485 | General-purpose corrosion resistance, good toughness, excellent castability, economical | Water pumps, general industrial fluid handling, mild chemical applications |
| CF3 | 304L | Low-carbon austenitic | ≥485 | Reduced carbon minimizes carbide precipitation; better resistance to intergranular corrosion after welding | Food processing equipment, sanitary pumps, welded assemblies |
| CF8M | 316 | Austenitic with molybdenum | ≥485 | Improved resistance to chloride corrosion, pitting, and chemical media vs CF8 | Marine pumps, chemical processing pumps, pharmaceutical equipment |

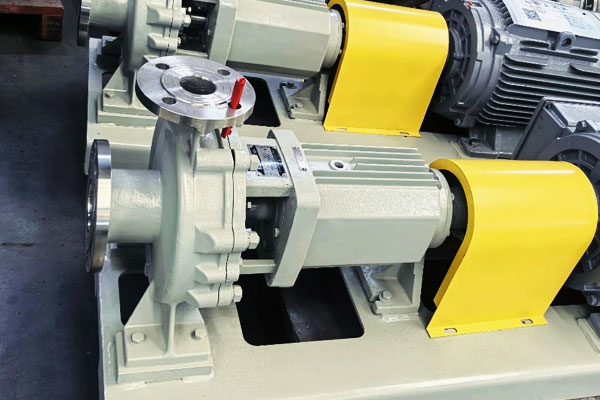

| CF3M | 316L | Low-carbon austenitic with molybdenum | ≥485 | Excellent weld corrosion resistance, superior chloride resistance | Offshore systems, desalination plants, chemical pumps, hygienic applications |
| CN7M | Alloy 20 | Ni-Cr-Mo-Cu austenitic | ≥485 | Outstanding resistance to sulfuric acid, phosphoric acid, and other highly corrosive chemicals | Acid processing, petrochemical pumps, chemical circulation systems |
| CD3MN | Duplex 2205 | Austenitic-ferritic duplex | ≥655 | High strength, excellent chloride SCC resistance, better wear resistance than austenitic grades | Seawater pumps, desalination equipment, offshore applications |
| CE8MN | Super Duplex 2507 | Super duplex | ≥760 | Extremely high strength, excellent pitting/crevice corrosion and chloride SCC resistance | Deep-sea equipment, offshore platforms, severe marine environments |
| CB7Cu-1 | 17-4PH | Precipitation-hardening | ≥670 | Very high strength, good corrosion resistance, excellent dimensional stability after heat treatment | High-pressure pumps, industrial hydraulics, aerospace and energy equipment |
6. Performance Advantages of Investment-Cast Stainless Steel Pump Housings
Outstanding Corrosion Resistance
The chromium content in stainless steel forms a stable passive oxide layer that protects the housing from oxidation and chemical attack. Depending on alloy composition, investment-cast housings withstand fresh water, seawater, chloride-containing solutions, acids, alkaline fluids, chemical processing liquids, and pharmaceutical fluids. CF8M (316) resists pitting and chloride corrosion thanks to molybdenum; duplex and super duplex grades offer superior protection in severe marine environments.
High Mechanical Strength and Structural Reliability
Investment-cast stainless steel housings withstand internal pressure, vibration, mechanical loads, and repeated operating cycles. The inherent strength of stainless steel lets engineers optimize wall thickness while maintaining safety, reducing weight and improving equipment efficiency.
Excellent Pressure Integrity and Leak Resistance
Because the housing is a continuous metal structure without welded seams, pressure resistance, fatigue performance, leak prevention, and structural consistency all improve. High-quality investment-cast housings can be designed for demanding applications, including pressure classes up to Class 1500, depending on material grade, design, and applicable standards.
Excellent Temperature Resistance and Thermal Stability
Austenitic grades such as CF8 and CF8M operate across a wide temperature range, from cryogenic conditions around −196°C to elevated temperatures approaching 800°C, depending on service conditions. Duplex grades perform well at moderately elevated temperatures while maintaining high strength. This thermal stability prevents cracking from thermal stress, dimensional instability, and premature material degradation.
Superior Hygienic Performance and Easy Cleaning
Stainless steel offers a smooth, non-porous surface. Combined with mechanical polishing, electropolishing, and passivation, surface roughness can drop below Ra 0.8 µm — making investment-cast housings ideal for food and beverage processing, pharmaceutical production, biotechnology, and medical equipment.
Complex Design Flexibility
Investment casting integrates curved volute passages, optimized hydraulic channels, integral mounting structures, complex flange arrangements, and reinforcement ribs directly into the casting, improving hydraulic performance while reducing the number of manufacturing operations.
High Dimensional Accuracy and Assembly Compatibility
Investment casting typically achieves tolerances of approximately ±0.1–0.3 mm depending on component size and complexity, maintaining correct impeller clearance, shaft alignment, reliable sealing, reduced vibration, and improved hydraulic efficiency — with better repeatability than sand casting.
Excellent Surface Finish and Reduced Machining
As-cast surface finish is approximately Ra 1.6–6.3 µm, and electropolished surfaces drop below Ra 0.8 µm. Smoother internal surfaces reduce fluid friction losses, improve flow efficiency, lower turbulence, and cut post-processing time and cost.
Low Maintenance and Extended Service Life
Stainless steel housings are less susceptible to rust, chemical degradation, surface deterioration, and coating failure than carbon steel or cast iron alternatives. In demanding corrosive environments, properly selected housings can exceed 30–60 years of service life, improving reliability and reducing lifecycle costs.
7. Applications of Stainless Steel Pump Housings
| Industry | Applications | Alloy Grade | Key Requirements |
|---|---|---|---|
| Chemical processing | Acid transfer, reactor feed, chemical injection, waste neutralisation | CF8M, CN7M | Corrosion resistance to aggressive chemicals; pressure integrity |
| Marine / offshore | Seawater cooling, ballast, bilge, fire pumps | CF8M, CD3MN | Seawater corrosion resistance; pitting and SCC resistance |
| Food & beverage | Sanitary, CIP, dairy, brewery pumps | CF3 (304L) | FDA-compliant; hygienic; easy to clean |
| Pharmaceutical | WFI pumps, sterile fluid transfer, clean-room pumps | CF3M (316L) | Ultra-clean; sterilisable; non-porous; electropolished |
| Water & wastewater | Water supply, wastewater, sludge, irrigation pumps | CF8, CF8M | Corrosion resistance; long service life |
| Oil & gas | Pipeline, wellhead, injection, refinery pumps | CF8M, CD3MN | High pressure; sour gas resistance; durability |
| Power generation | Cooling water, boiler feed, condensate pumps | CF8, CF8M | High-temperature; pressure integrity; corrosion resistance |
| Pulp & paper | Bleach, chemical recovery, stock pumps | CN7M, duplex | Chlorine dioxide resistance; high strength |
| Desalination | High-pressure, brine, seawater intake pumps | CD3MN, CE8MN | Extreme chloride resistance; high strength |
| Mining | Slurry, dewatering, chemical injection pumps | CF8M, duplex | Abrasion resistance; corrosion resistance |
8. Stainless Steel Pump Housing vs Other Manufacturing Methods
| Comparison Factor | Investment Casting | CNC Machining | Fabricated Welding | Sand Casting |
|---|---|---|---|---|
| Manufacturing Principle | Molten stainless steel poured into ceramic molds created from wax patterns | Material removed from blocks or forgings by cutting tools | Stainless steel plates joined by welding | Molten metal cast into sand molds |
| Design Complexity | Excellent — complex geometries, internal passages, curved volutes, thin walls | Limited by tool accessibility and material removal | Moderate — complex shapes need multiple parts and welding | Good for large, simple geometries; limited fine detail |
| Dimensional Accuracy | High, typically ±0.1–0.3 mm | Very high, often ±0.01–0.05 mm | Lower due to welding deformation | Moderate, with larger machining allowances |
| Surface Finish | Excellent as-cast, Ra 1.6–6.3 µm | Excellent machined finish | Requires grinding/polishing after welding | Relatively rough |
| Material Utilization | High — near-net-shape | Low to medium | Medium | Medium |
| Mechanical Integrity | Excellent — homogeneous, few joints | Excellent from quality forgings | Reduced in heat-affected zones | Good, but process control matters |
| Corrosion Resistance | Excellent — no welded areas | Excellent with corrosion-resistant stock | Can be reduced near weld zones | Good when controlled |
| Pressure Resistance | Excellent — suitable for high-pressure pumps | Excellent for machined housings | Depends on weld quality | Good for medium pressure |
| Production Volume | Low to medium volume; economical for custom parts | Low to medium; ideal for prototypes | Low volume and repairs | Medium to large runs |
| Tooling Cost | Moderate — wax tooling and ceramic molds | Low initial tooling, high machining cost for complex parts | Low tooling, higher labor | Relatively low |
| Weight Reduction | Excellent — optimized wall thickness | Good but limited by machining feasibility | Limited | Moderate |
| Typical Applications | Chemical, marine, pharmaceutical, food, high-performance centrifugal pumps | Precision pump components, prototypes, repair parts | Large industrial pumps, low-volume custom equipment | Large water pumps, heavy-duty applications |

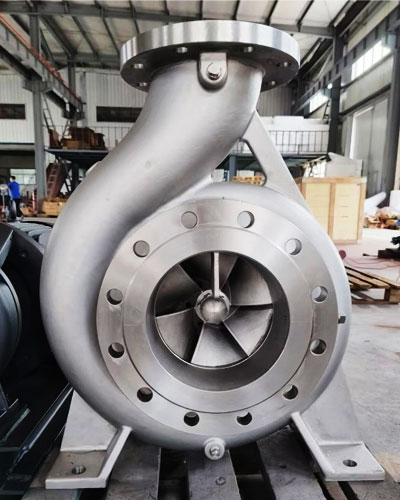

9. Choose SHBD Metal for Custom Investment-Cast Stainless Steel Pump Housings
SHBD Metal specializes in high-quality precision investment castings for stainless steel pump housings and components.
| Capability | Details |
|---|---|
| Materials | CF8 (304), CF8M (316), CF3 (304L), CF3M (316L), CN7M (Alloy 20), CD3MN (2205 duplex), CE8MN (2507 super duplex), CB7Cu-1 (17-4PH) |
| Part weight | 0.1 kg to 200 kg |
| Dimensions | Up to 800 mm diameter |
| Tolerances | ±0.1–0.3 mm (CT4–CT6 per ISO 8062) |
| Surface finish | Ra 1.6–6.3 µm as-cast; electropolishing available |
| Heat treatment | Solution annealing, stress relief |
| Quality | ISO 9001:2015 certified; 100% NDT and pressure testing |
| Lead time | 8–12 weeks for tooling and first articles; 2–4 weeks for repeat orders |
Why Partner with SHBD Metal?
- In-house tooling: wax dies designed and manufactured in-house.
- Process simulation: solidification simulation for defect-free castings.
- Automated shell building: consistent shell quality and permeability.
- Vacuum melting: available for high-alloy grades.
- Full traceability: material and process documentation for every batch.
- Engineering support: material selection and design optimization assistance.
- Competitive pricing: direct from manufacturer; no middleman markups.
FAQs
What is the most common stainless steel grade for pump housings?
CF8M (316) is the most common grade for pump housings, offering excellent corrosion resistance, good strength, and moderate cost. For food and pharmaceutical applications, CF3M (316L) is preferred for its low carbon content and weldability.
Can investment-cast pump housings be repaired?
Minor casting defects can be repaired by welding with appropriate filler and procedures. Castings with major defects are typically scrapped and recast. Hot Isostatic Pressing (HIP) can eliminate internal porosity but cannot repair surface defects.
What is the difference between volute and diffuser pump housings?
Volute housings use a spiral-shaped passage that converts velocity to pressure gradually. Diffuser housings use stationary guide vanes for more efficient pressure conversion. Investment casting can produce both types.
Are investment-cast pump housings suitable for high-temperature applications?
Yes. Austenitic grades (304, 316) can be used up to 800–850°C. For higher temperatures, nickel-based superalloys or 310 stainless steel may be required.
