Getting well-designed products to market quickly is what keeps a business competitive, and the choice of manufacturing process can shape your profitability, market position, and how customers perceive your brand. Injection molding and 3D printing are the two plastic-production workhorses that most teams weigh up, and they sit at very different points on the cost, speed, and flexibility spectrum. Molding dominates high-volume runs, while additive manufacturing shines for prototyping, custom parts, and low-volume production.
This guide breaks down how each process works, what they cost at different volumes, which materials they accept, and when each one is the smarter call for your project.
1. How Each Process Works: A Technical Look
The Injection Molding Cycle
- Clamping: the two mold halves close and lock together under pressure.
- Injection: plastic pellets are melted with heat, and the molten resin is forced into the mold cavity at high pressure.
- Cooling: the material solidifies into the part as it cools inside the mold.
- Ejection: the mold opens and ejector pins push the finished piece out.
Injection Molding Variations
- Thermoplastic Injection Molding: the most common variant, running resins such as ABS, PP, and PE.
- Thermoset Molding: used for materials that cure irreversibly into their final shape.
- Overmolding and Insert Molding: combines multiple materials or encapsulates hardware inserts for assembly-ready parts.
Molding Accuracy and Finish
- Tolerances: typically ±0.005 in (0.127 mm), with high-precision molds holding ±0.001 in (0.025 mm).
- Surface Finish: spans from high-gloss SPI-A polish to textured Mold-Tech and VDI finishes.

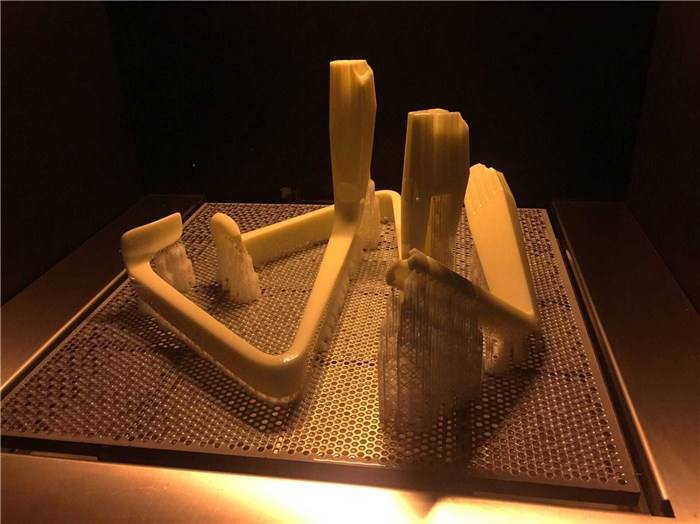

How Additive Manufacturing Works
- Selective Laser Sintering: a CO2 laser fuses nylon-based thermoplastic powder layer by layer.
- Multi-Jet Fusion: fusing and detailing agents are applied selectively to nylon powder, then fused with heating elements.
- Stereolithography: a UV laser traces each thin layer inside a vat of liquid thermoset resin.
- Digital Light Processing: a digital projector flashes full layers onto a vat of photosensitive resin.
- Hybrid PhotoSynthesis: combines a CO2 laser and a projector to cure resin layers.
- Fused Filament Fabrication: a heated nozzle extrudes thermoplastic layer by layer to build the part.
- Material Jetting: tiny droplets of liquid photopolymer are sprayed onto the build platform, layer by layer.
2. Cost Comparison
| Parameter | Injection Molding | 3D Printing |
|---|---|---|
| Upfront Tooling Cost | $1,000–$10,000+ (aluminum) | $0 |
| Per-Unit Cost (Low Volume) | $10–$100+ | $5–$20+ |
| Per-Unit Cost (High Volume) | $0.80–$3.00 | $10–$20+ |
| Lead Time (First Parts) | 1–3 weeks for tooling, minutes per part after | Hours to days |
| Economical Volume Threshold | >250–2,000 units | <100–250 units |
Notes:
- Injection Molding: the tooling investment raises upfront spend, but the economics flip in your favor once volume passes roughly 250–2,000 units.
- 3D Printing: nothing to pay for tooling up front, so it wins on small batches; per-part price stays flat, and molding eventually becomes cheaper at scale.
3. Material Options Compared
- Injection Molding: the broadest material menu, from engineering-grade plastics with strong mechanical properties to commodity resins. Common choices include ABS, PP, PE, PC, Nylon, TPU, PEEK, and LSR, and molded parts come out stronger and more isotropic.
- 3D Printing: a narrower selection that depends on the technology. Typical materials are PLA, ABS, PETG, nylon, photopolymer resins, and carbon- or glass-fiber composites, though printed parts show reduced strength along the Z-axis.
4. Design Freedom and Geometric Complexity
- Injection Molding: parts must respect draft angles, uniform wall thickness, and parting-line constraints, which keeps geometry fairly disciplined.
- 3D Printing: nearly unlimited geometry, including internal channels, undercuts, and organic shapes that no mold could ever open around. The trade-off is that very complex designs often need more post-processing.
5. Part Quality: Strength, Finish, and Post-Processing
- Injection Molding: delivers isotropic parts with consistent strength, excellent surface finish, and minimal post-processing.
- 3D Printing: parts are often anisotropic with weak points between layers and a variable surface finish; post-processing is usually required for smooth surfaces and tight accuracy.
6. Industry Applications
| Industry | Injection Molding Examples | 3D Printing Examples |
|---|---|---|
| Automotive | Interior and exterior panels, connectors | Lightweight brackets, custom fixtures |
| Aerospace | High-volume housings and ducting | Complex brackets, rapid tooling |
| Medical | Device housings and syringes | Custom implants, dental aligners |
| Consumer Goods | Electronic casings and toys | Prototypes and limited-edition products |
7. How to Choose: Injection Molding vs 3D Printing
| Metric | Injection Molding | 3D Printing |
|---|---|---|
| Production Volumes | >2,000 units is cost-effective | <250 units is cost-effective |
| Design Complexity | Simple to moderately complex | Highly complex, organic, internal features |
| Lead Times | Longer, tooling required | Short, no tooling |
| Material Properties | Broad, certified, high strength | Expanding but currently limited |
| Customization | Costly, new tooling per change | Easy, no new tooling needed |
| Surface Finish | Excellent, wide range of finishes | Variable, often needs post-processing |
Are you ready to make your manufacturing project a reality?
FAQs
What advantages does injection molding offer over 3D printing?
- High production efficiency and speed at scale.
- Consistent part quality and dimensional accuracy.
- Ability to produce complex geometries and fine features.
- Cost-effectiveness for large production volumes.
- A wide range of material options and properties.
What disadvantages does injection molding have compared to 3D printing?
- High upfront tooling costs.
- Longer lead times before production can start.
- Limited design flexibility once the tool is cut.
- Material waste from runners and setup.
- Difficulty producing some complex geometries.
What advantages does 3D printing offer over injection molding?
- Complex geometries and intricate designs that molding cannot achieve.
- Quick turnaround for prototypes, enabling faster iteration.
- Additive builds use only the material needed, minimizing waste.
- No tooling investment, so low volumes stay affordable.
- Easy customization and personalization of parts.
What disadvantages does 3D printing have compared to injection molding?
- It can be slower for large batches.
- Less cost-effective for high-volume production.
- Part quality and consistency may not match molding.
What other manufacturing methods should I consider?
- CNC machining for precision machined parts.
- Sheet metal fabrication for metal enclosures and brackets.
- Urethane and silicone casting for flexible, low-volume parts.
