Two parts stamped on the same press can look identical, yet end up in very different places: one clears inspection and drops into assembly without a fuss, the other is thrown out because a hole drifted by a few hundredths of a millimeter. The machine settings never changed — the difference lives in the choices made before the job ever ran.
Those choices divide into two buckets: what you control on the print, and what your supplier controls on the floor. Only when both buckets are handled correctly does a tolerance on paper turn into a tolerance you can actually ship against.
Accuracy Is Settled Before the Press Runs
A press is a repeater, not a creator. It faithfully turns the geometry of a die and the numbers on a drawing into part after part. If the print asks for something the material cannot deliver, the die is dull, or nobody agreed on how to measure, the machine simply reproduces the problem at high speed.
Treat precision as a three-link chain:
- Print decisions — yours: the grade and temper, the allowed thickness spread, bend radii, and the short list of features that truly need tight numbers.
- Die decisions — your supplier’s: clearance between punch and die, how stations are laid out, pilot and guide design, and what the inserts are made of.
- Floor discipline — shared: consistent feeding, correct lubrication, scheduled die upkeep, and a fixed inspection cadence.
Nearly every accuracy failure traces to one of those three links. The sections below walk through each one in the order it touches your job — what fixes the starting point, what bounds the best possible result, and what decides whether a part is accepted.
Material Choice Sets the Baseline
The accuracy floor is set the moment a material is picked. Run the same die against high-strength steel, stainless, aluminum, or a copper alloy and the parts will not come out the same.
Strong and stainless grades stiffen as they are worked and rebound harder after forming, which hits bends and lanced tabs hardest. Aluminum moves easily but tends to gall and scratch, so the surface finish and lubricant get decided up front. Copper alloys sit somewhere in between, with their own bend-allowance and recovery behavior.
Thickness is just as influential. Whatever variation the coil arrives with flows straight into cut dimensions, bend allowance, and flatness. In practice the thinner the stock, the easier it is to stay tight, simply because the loads on the die are smaller and the frame deflects less.
Our stamping line runs material from 0.2 mm up to 6.0 mm. Even so, the print should pin down the nominal thickness, the acceptable band, and the material spec, so the die can be built to match the coil that will actually feed it.
| Material factor | Effect on accuracy | What to specify on the drawing |
|---|---|---|
| High-strength & stainless steel | Rebounds more and work-hardens in bends | Exact grade, temper, substitution rules |
| Aluminum | Prone to galling and surface marks | Surface finish and lubrication notes |
| Copper alloys | Own bend-allowance and recovery profile | Alloy designation and hardness range |
| Thickness spread | Carries into cuts, bends, and flatness | Nominal thickness plus tolerance band |
| Incoming coil condition | Residual stress and camber disturb flat parts | Material standard and surface spec |
Tooling Quality Caps Precision
The die sets the upper bound on how precise a stamped part can be. Leading the list is die clearance — the deliberate gap between punch and die, usually stated as a percentage of the stock thickness and commonly sitting in the 5–10% per side range. Set it correctly and the cut edge stays clean, burrs stay small, and the rollover stays controlled.
Frame rigidity belongs in the same sentence. A solid press with enough tonnage keeps deflection out of the equation, so demanding jobs should never be put on a machine that is barely big enough. In a progressive die, accuracy behaves like a chain: the strip advances through stations and depends on pilots and guides at every step; lose the strip position and the error compounds down the line.
On parts that reorder, the insert material decides how long accuracy lasts. Carbide outlives tool steel by a wide margin, which is why high-volume precision work runs replaceable carbide inserts. Wear is the quiet enemy of repeatability — as punches and inserts erode, burrs grow and hole sizes wander. A regular maintenance program plus replaceable inserts keeps that drift out of production.
| Tooling element | What it controls | What to ask the supplier |
|---|---|---|
| Die clearance | Edge quality, burr size, rollover | Clearance matched to stock and grade |
| Pilots and station layout | Cumulative error in progressive dies | How strip position is held between stations |
| Press frame and tonnage | Deflection during the stroke | Press correctly sized for the job |
| Insert material | Wear life between services | Insert grade and change-out plan |
| Maintenance schedule | Consistency across batches | Preventive maintenance records |
Springback and Forming Errors
Most missed tolerances on stamped parts happen at the bend, and the usual culprit is elastic recovery. The instant the punch lifts, the metal tries to return toward its original shape. How far it rebounds depends on the grade, the thickness, the radius, and the grain direction — which means there is no single fixed number you can simply subtract.
Shops compensate by over-forming. To land a 90° bend after release, the die may be cut to form 92°. Because the compensation depends on the specific coil, its temper, and press conditions, the first articles have to be measured before the tool is signed off for the full run.
A useful rule of thumb: formed angles will never match cut features for repeatability. A hole diameter or the center distance between two holes can hold a much tighter number than a bend angle, because forming carries elastic recovery with it. On the print, dimension what the assembly actually needs — like the distance between two mounting holes taken after bending — instead of chasing the angle itself.
Agree on the Measurement Basis
The same stamped bracket can pass from one datum and fail from another. Establish the holes as the reference and the flange reads one length; establish the formed edge instead and it reads differently. Both answers are correct — they are simply measuring different things.
That is why the measurement rules must be fixed before the first article ships, not negotiated after a rejection. The RFQ should spell out the datums, the instruments (CMM, 2D vision, optical comparator), and the gauge plan so every party measures the same way.
First article inspection is where this agreement gets locked in: measure part one against the agreed plan, and every later part is judged by the same yardstick. Give the supplier’s quality department the same scrutiny — check the equipment they use, the FAI and RoHS reports they produce, and the management systems behind them, ISO 9001 or IATF 16949 where automotive parts are involved.
Tolerances Belong on Critical Features
Any dimension on a stamping print can be tightened, but each tightened dimension carries a price: costlier tooling, finer clearance, more inspection, shorter die life. Cover a print in ±0.025 mm callouts and you pay for precision on surfaces that never needed it.
The discipline is to separate critical-to-function (CTQ) dimensions from ordinary ones. Mounting-hole positions, sealing faces, electrical contact zones, and assembly widths earn the tight number; everything else should carry a general tolerance so the die is built for life rather than for scrap avoidance.
| Tolerance decision | Effect on cost and tooling | When it makes sense |
|---|---|---|
| Tight on CTQ features | Cost concentrates where function demands it | Assembly, sealing, contact, or fit depends on it |
| General elsewhere | Cheaper die, longer life, faster inspection | Nothing mates or seals against the surface |
| Tight everywhere | Wasted money and accelerated wear | Rarely justified; question every callout |
| Looser than needed | Low die cost but functional risk | Only when function is proven by other means |
SHBD Metal holds stamped tolerances to ±0.025 mm on features that call for it. A precision tier exists so the tight numbers land exactly where the assembly depends on them — not to make every dimension on the part expensive.
When CNC Beats Stamping
Stamping earns its place on high volumes of thin sheet, but it is not always the answer. Low volume makes the tooling hard to justify. A tolerance beyond the process’s reach cannot be rescued by press settings. And a design still in motion fights against a fixed die that locks in geometry you may want to change.
| Situation | More practical route |
|---|---|
| Low volume or frequent design changes | CNC machining avoids the tooling investment |
| One ultra-tight feature in a stamped part | CNC finishing on that feature only |
| Thicker or harder material with deep features | Machining or a hybrid route |
| Prototype before production ramp | Machined prototype, then transfer to stamping |
| Very high volume of thin sheet | Progressive die stamping stays economical |
Choosing between them is a route decision, not a judgement of the process. A stamped part that misses tolerance in volume is dearer than a machined part that makes it. When the design is still evolving, put the geometry and material through a DFM pass first and let the numbers choose the process.
A Good RFQ Gets Realistic Tolerances
Quotes only come back realistic when the RFQ is complete. The supplier needs to know which features are critical and which are not, so the die and the inspection plan focus on the right things. A stamping RFQ should carry the material standard and temper, the finished thickness, the critical dimensions with their datums, and the reporting required.
From there the precision ramp follows a familiar path: first article inspection, a pilot batch to prove the process, then SPC sampling through production to catch drift before it turns into scrap. Every checkpoint measures against the same agreed basis.

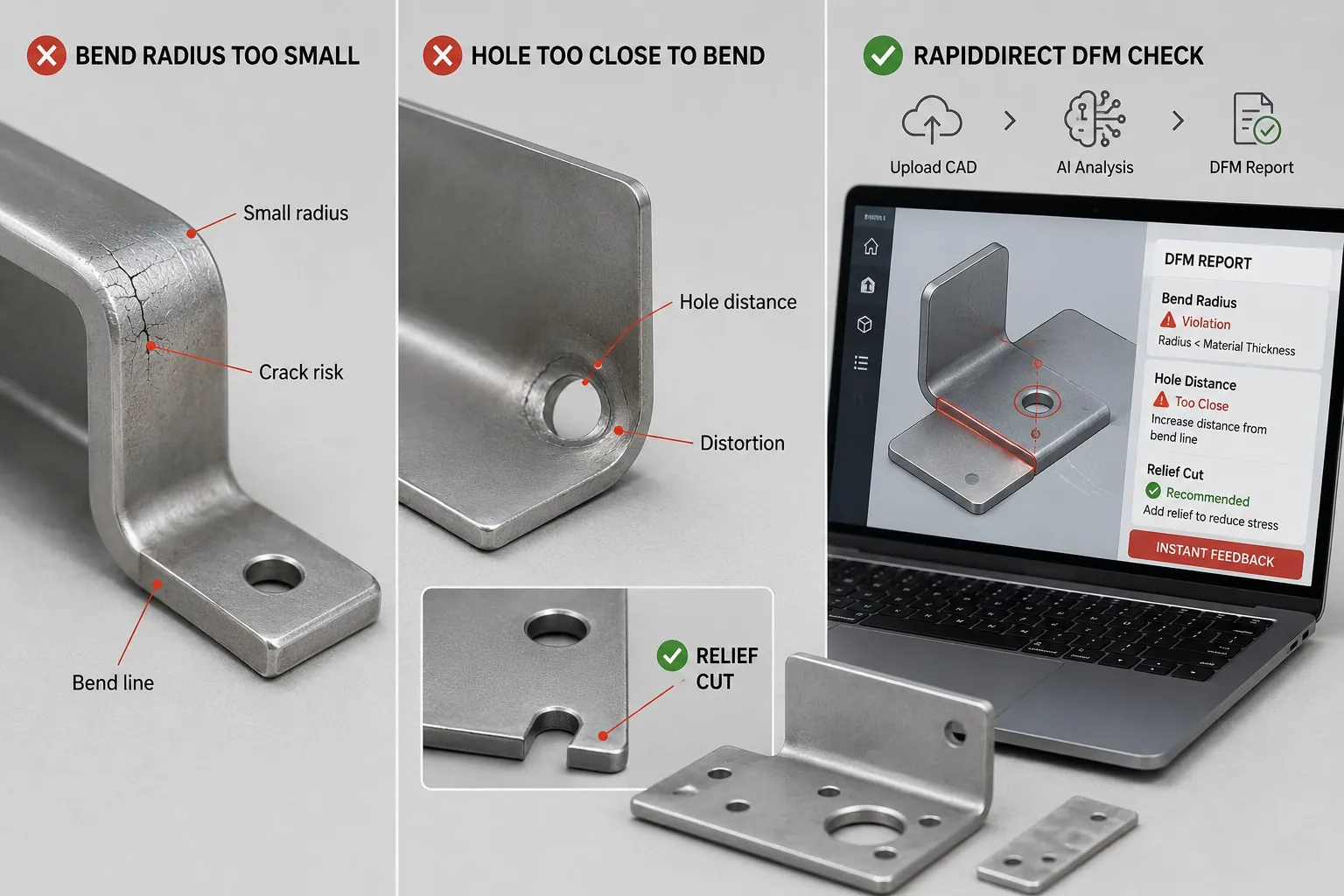

A strong supplier shows its value here: a proper DFM pass will flag tolerances that are tighter than they need to be, propose a better datum scheme, and confirm the target is reachable before any die steel is cut — far cheaper than learning it from the first scrapped batch.
FAQs
How tight can precision metal stamping tolerances go?
Where the feature genuinely needs it, precision stamping can hold ±0.025 mm. The practical limit depends on the material, its thickness, and the feature type — a DFM review will confirm what is realistic for your part.
Do tighter tolerances always drive up cost?
Broadly, yes: they demand finer die clearance, extra inspection, and faster tool wear. That is precisely why the tight budget should be spent on critical features and kept loose everywhere else.
Why do my measurements and the supplier’s never quite agree?
Usually because the datum or the measuring method differs. Measure from a pierced hole and you get one answer; measure from the formed edge and you get another. Fix the datum and gauge plan in the RFQ, confirm it at first article, and the numbers line up.
When is CNC machining the better choice than stamping?
When the volume is too small to absorb tooling cost, when the tolerance sits beyond stamping’s capability, or when the design is still changing. Machining suits low-volume and very tight work; stamping stays the economic answer at scale.
