The Forms We Supply
Four routes cover most of what we quote. Each is a different mill or process route, so the size
window and the lead time differ even where the grade looks similar.

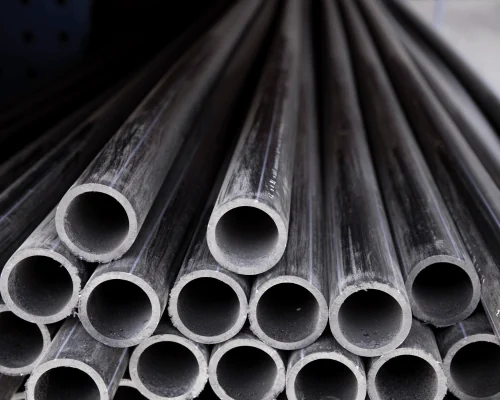

Type E, Grade A and B
Electric-resistance welded pipe covering the common sizes, with Grade B carrying the higher yield for pressure work.
Water, air, steam, general service

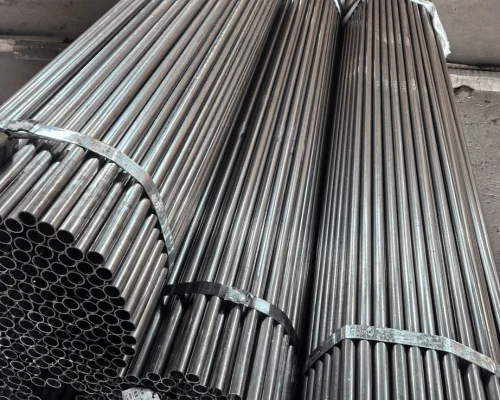

Type F, Grade A
Furnace-butt welded pipe in the small sizes, for mechanical and low-pressure work where the route is still economical.
Small-bore mechanical, low pressure

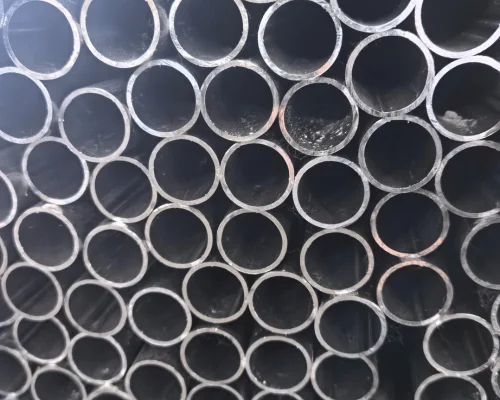

Threaded and coupled
Ends threaded and fitted with couplings before dispatch, so the line can be assembled with wrenches on site.
Sprinkler lines, air lines, repairs

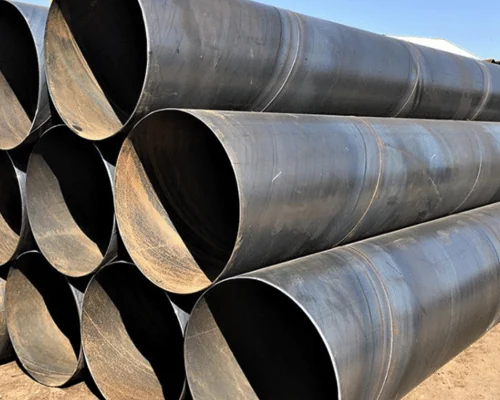

Grooved and beveled
Ends prepared for mechanical couplings or welding, matching the joint method the installation uses.
Fire protection, HVAC, welded lines
Size Range and Standard
A53 is quoted by type, grade, size and end finish. The type is not a detail: it decides which sizes are available and how the pipe is tested.
Swipe the table sideways for the notes →
| Parameter | Range | What decides it |
|---|
| Type | Type E (electric-resistance welded), Type F (furnace-butt welded) | Type F covers small sizes; Type E covers the wider range and higher grades. |
|---|
| Grade | Grade A, Grade B | Grade B has the higher minimum yield and tensile, so it carries more pressure at the same wall. |
|---|
| Size | From 1/8" to 26" nominal, wall per schedule | The schedule sets the wall; the wall and grade together set the pressure rating. |
|---|
| Length | 6 m and 12 m, or cut to length | Double-random lengths reduce joints on a long run. |
|---|
| Ends | Plain, beveled, threaded and coupled, grooved | The end preparation follows the joining method used on site. |
|---|
| Coating | Black, varnished, galvanized, FBE, 3PE | Galvanizing suits atmospheric exposure; FBE and 3PE suit buried line pipe. |
|---|
Products' Properties and Advantages
Four properties explain why A53 remains the default general-purpose carbon pipe.
Strength in a known grade
Grade A and Grade B have published minimum yield and tensile values, so the pressure rating can be calculated rather than assumed.
Weldability
The carbon and manganese limits in A53 keep the pipe weldable with conventional processes, which is why it is used for fabricated and field-welded lines.
Tested, not just produced
The standard requires pressure or non-destructive testing, so the pipe arrives with evidence rather than a claim.
Availability in the sizes that matter
A53 covers the small and medium sizes that fittings, valves and threaded connections are made for.
How We Help Customers
A53 orders come down to type, grade, size and ends. We confirm each before quoting, because the type decides what is available at that size.
01
Choose the type for the size
Type F is limited to small sizes; Type E covers the range and is the usual choice above it.
02
Choose the grade for the pressure
Grade A for general mechanical work, Grade B where the calculation needs the higher yield.
03
Set the wall from the schedule
The schedule number defines the wall, and the wall with the grade defines the pressure rating.
04
Agree the ends, the coating and the documents
Beveled, threaded or grooved, coated for the environment, with the test report traceable to the heat.
Real Applications
A53 pipe is used where a general-purpose carbon pipe has to be welded, threaded or grooved on site.
Water, air and gas lines
Mechanical and low-pressure process lines where the grade and the wall are chosen from a schedule.
Structural and fabrication work
Frames, bollards and supports where pipe is used as a structural section.
Fire protection and HVAC
Grooved and threaded pipe for sprinkler and heating systems, where the joint method drives the end preparation.
Casing and general mechanical
Casing, guards and machine parts where a tested pipe is preferred to a structural tube.
