Estimating custom machining costs and timelines without a complete quote creates supply chain bottlenecks. Underestimating project requirements early leads to painful redesigns, risk premiums, and blown delivery schedules later. We have analyzed thousands of manufacturing projects to isolate the exact cost drivers and missing data that stall purchasing decisions. For mechanical engineers and procurement teams who need accurate, comparable quotes on the first try, standardizing your submission package is critical. Here is the comprehensive checklist you need to streamline your cnc machining rfq.
The 6-Point CNC RFQ Submission Checklist
| Category | Required Information | Consequence of Missing Data |
| 3D CAD Model | STEP (.stp) or IGES format | Suppliers cannot run CAM simulations to calculate machine time. |
| 2D Engineering Drawing | PDF format with GD&T, dimensions, and revisions | No tolerances or surface standards; suppliers quote based on assumption. |
| Material Spec | Grade + Temper + Form (e.g., 6061-T6 Aluminum Bar) | Risk of material substitution and structural failure. |
| Quantities | Volume tiers (e.g., 10 / 50 / 500 units) | Loss of economy-of-scale discounts on setup costs. |
| Surface Finish | Roughness (e.g., 3.2μm/125μin), coatings, masking | Parts fail cosmetic or functional fit checks upon delivery. |
| Business Terms | Delivery date (avoid “ASAP”), inspection docs (FAI, CMM) | Hidden costs for expedited shipping and quality reports. |

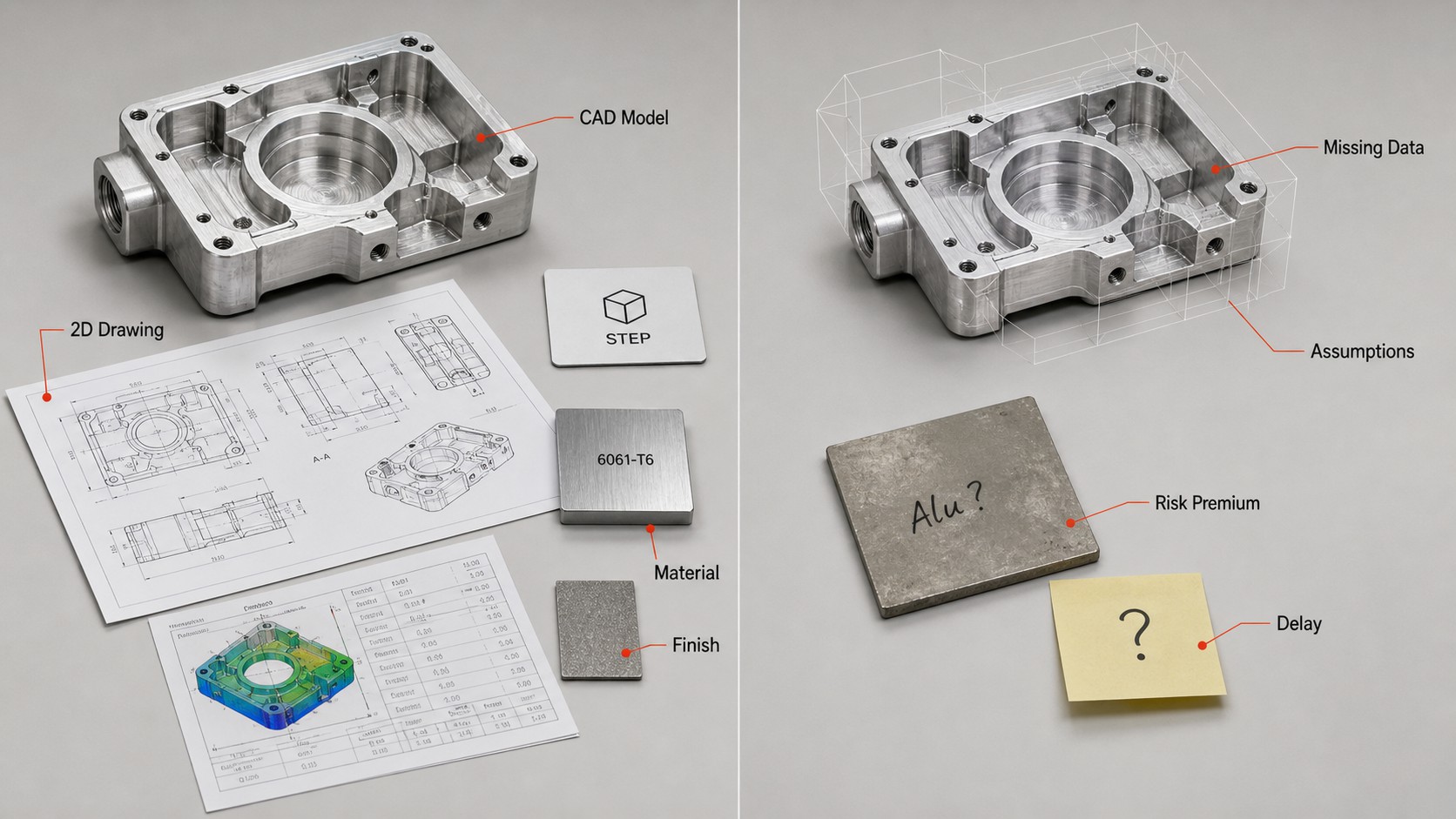

Engineering Technical Files: The Foundation of a CNC RFQ
3D CAD Models and 2D Drawings
A 3D model drives the CAM software for toolpath generation and machine time calculation. However, a 3D model alone is insufficient for a custom cnc machining rfq. You must pair it with a 2D PDF drawing containing GD&T, thread callouts, and critical-to-quality (CTQ) dimensions.
If versions between your 3D model and 2D drawing conflict, suppliers will halt the quote to clarify. Always double-check revision numbers before submission.
Exact Material Specifications
Never request a quote with vague material callouts like “aluminum” or “stainless steel.” You must specify the alloy grade, temper, and raw material form. For example, specify 6061-T6 Aluminum Bar or 17-4 PH H900 Forging.
If you allow material substitutions to save costs, explicitly state this in your rfq cnc machining package.
| Material Category | Common Grades | Machinability & Cost Profile |
| Aluminum | 6061-T6, 7075, 2024 | 6061 is highly machinable and low cost. 7075 offers high strength but increases tool wear. |
| Stainless Steel | 304, 316, 17-4PH | Prone to work hardening; requires slower feed rates. 17-4PH is ideal for high-strength precision parts. |
| Carbon Steel | 1045 | Smooth machining process. Lacks innate corrosion resistance; requires secondary coating. |
| Brass/Copper | Free-machining brass | Excellent tool life and cutting speeds. Ideal for electrical contacts and standard fittings. |
| Engineering Plastics | POM (Delrin), ABS, Nylon | Susceptible to heat deformation. Requires specialized fixturing and temperature control. |
Tolerances and Surface Finishes
Apply tight tolerances only to functional interfaces. Over-tolerancing an entire part spikes machining and inspection times, raising your quoted price by 20% to 40%. The standard CNC machining tolerance at RapidDirect is ISO 2768-m (±0.1 mm). We can achieve precision tolerances of ±0.01 mm upon request.
Specify precise roughness values (e.g., Ra 1.6 μm) and detail secondary processes like Type II Anodizing or bead blasting. RapidDirect offers anodizing, bead blasting, electroplating, powder coating, and dozens of other finishes.
Pro Tip: Highlight mask areas on the 2D drawing to prevent anodizing buildup on critical threads.
CNC Machining RFQ Commercial Variables That Affect Supplier Pricing
Volume Tiers and Delivery Dates
Always request tiered pricing in your documents. Machining setup times are fixed; ordering 50 units instead of 10 units drastically reduces the per-part cost. Define exact delivery dates rather than requesting the parts “ASAP.”
Vague timelines force a cnc machining rfq supplier to add expedition fees. Traditional suppliers take 1 to 2 days just to return a quote. RapidDirect uses an AI-driven quoting engine that returns prices in minutes.
Inspection and Documentation
Specify your quality reporting requirements upfront. First Article Inspection (FAI), CMM reports, and Material Test Reports (MTR) require additional labor. Requesting these after a wholesale cnc machining rfq is approved causes delays and hidden fees.
RapidDirect holds ISO 9001, 13485, 14001, and IATF 16949 certifications. We are equipped with CMM and XRF inspection equipment to implement full-process quality control.

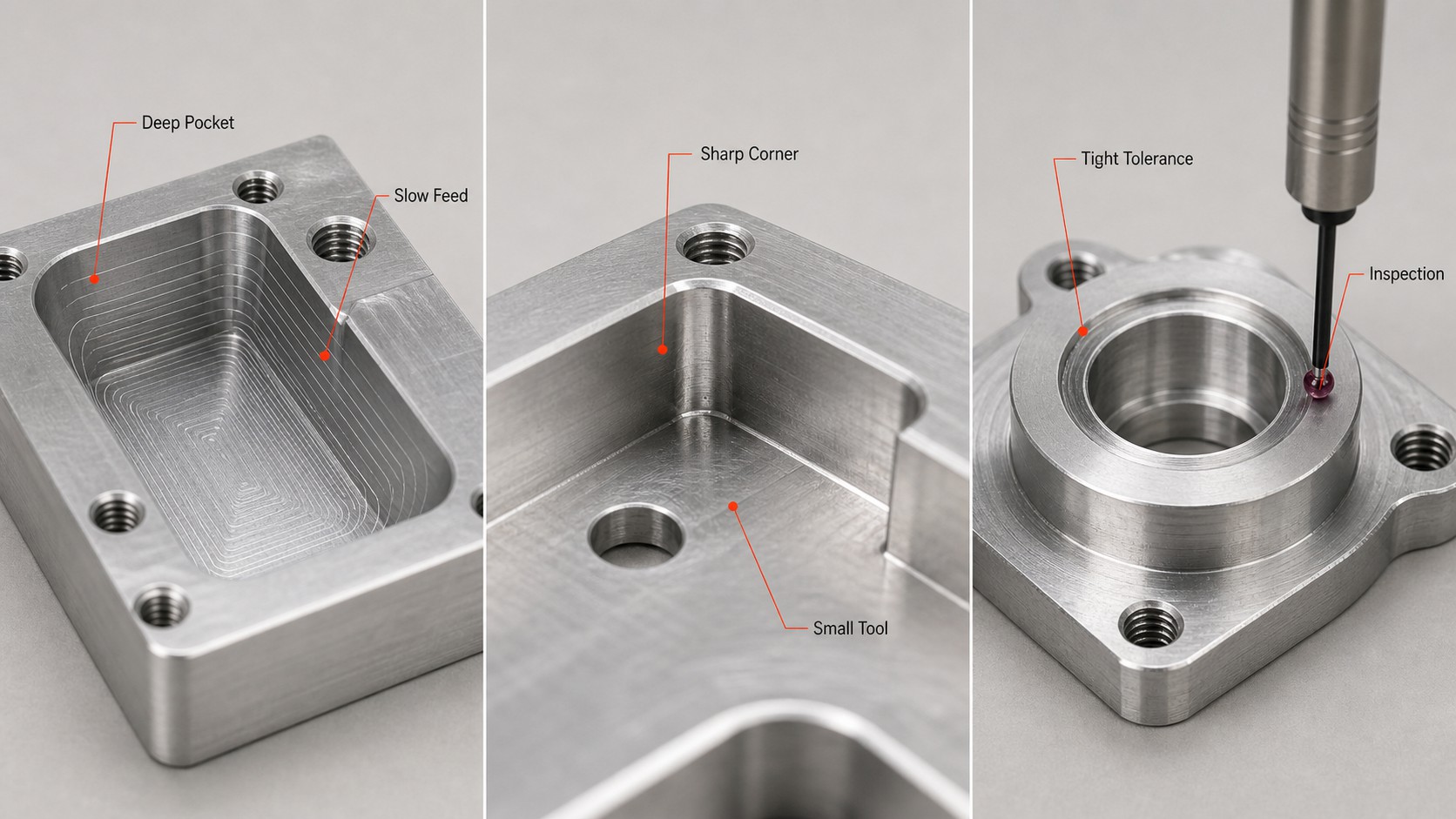

CNC Machining RFQ DFM Self-Check Before Submission
Executing a CNC DFM check before sending your package lowers costs. Ensure all internal pockets have radii matching standard tool sizes (1 mm, 2 mm, or 3 mm). Maintain a minimum wall thickness of 1 mm to prevent vibration and chatter during cutting.
Keep pocket depth to a maximum of 6x the tool diameter. Deeper cavities require specialized tooling and slower feed rates. Consolidate features to minimize setups.
Parts requiring 5-axis indexing for composite angles will cost significantly more than parts optimized for a 3-axis machine. You can calculate this manually, OR you can upload your STEP file to RapidDirect’s intelligent online platform to get free DFM reports and real-time order tracking.
CNC Machining RFQ Strategy for Prototypes vs Production Orders
Do not combine prototype and production requests into a single submission. Prototyping prioritizes speed and DFM feedback, typically involving 1 to 50 parts. Production quotes focus on process stability, SPC controls, and long-term supply chain logistics.
| Metric | Prototype RFQ | Production RFQ |
| Core Objective | Fast delivery, design validation | Cost stability, process repeatability |
| Quantities | 1 – 50 units | Batches + Annual Volume Forecast |
| Inspection | CTQ dimensions only | FAI, CMM, MTR, SPC data |
| Supplier Focus | Machining capability, speed | Capacity, logistics, financial stability |
RapidDirect provides full-cycle NPI (New Product Introduction) services, taking projects from design review and prototype validation to mass production handover. We deliver CNC prototypes as fast as 1 day, with a standard lead time of 3 to 5 days. We manage high-volume scalability through our network of 700+ certified partners.
CNC Machining RFQ FAQs
Neither file works alone. The 3D model estimates machine time, while the 2D drawing defines tolerances and quality standards. They must match perfectly to avoid delays.
Universal tight tolerances, sharp internal corners, deep pockets, and unnecessary 5-axis undercuts drive up costs dramatically. Design for 3-axis machining whenever functional requirements permit.
Yes. Standard Type II anodizing adds roughly 0.005 mm to 0.025 mm to the surface. You must account for this in your 2D drawing tolerances.
Yes. Most reputable cnc machining rfq manufacturers offer this. Submitting clean, complete data makes it easier for them to provide actionable CNC cost-saving advice.
If material grades or tolerances are ambiguous, suppliers price the job assuming the most difficult scenario to protect their margins. Complete documentation removes this ambiguity.
Standardizing your request process eliminates back-and-forth emails and ensures accurate cost baselines. A complete data package gives your team leverage, visibility, and total control over manufacturing spend.
