Types of Gears Explained: Shaft Layouts, Materials and Machining Methods

Gears are easy to overlook until one of them wears out. The toothed wheels that carry motion from shaft to shaft sit inside clocks, conveyors, gearboxes and machine tools, trading speed for torque or torque for speed without ever slipping. Pick the wrong profile for the job and the symptoms show up soon enough — noise, heat, rapid wear, or a drive package that refuses to fit inside the housing.

This guide covers the gear types our machinists cut most often, explains how shaft layout narrows the options long before tooth geometry is discussed, compares the metals and engineering plastics we run, and sets out the cutting, molding and finishing routes that turn a blank into a finished gear.

What Gears Are and What They Do

A gear is a rotating part whose rim carries evenly spaced teeth. Mount two gears so their teeth interlock and turning one forces the other to turn as well — a positive drive in which nothing depends on friction. Any group of gears working together is called a gear train.

Motion enters through one shaft and leaves through another, and because the teeth cannot slip, the ratio between them is fixed by tooth counts. That is how engineers dial in a target: a small gear driving a large one multiplies torque and slows the output, while a large gear driving a small one does the reverse and raises speed. In industry the smaller member of a pair is known as the pinion.

Control over speed, torque and rotation direction is what keeps gears in service at every scale, from a watch movement to a mine hoist. A well-made set holds tight tolerances, and certain arrangements will even carry power around a corner, onto a shaft that does not line up with the input.

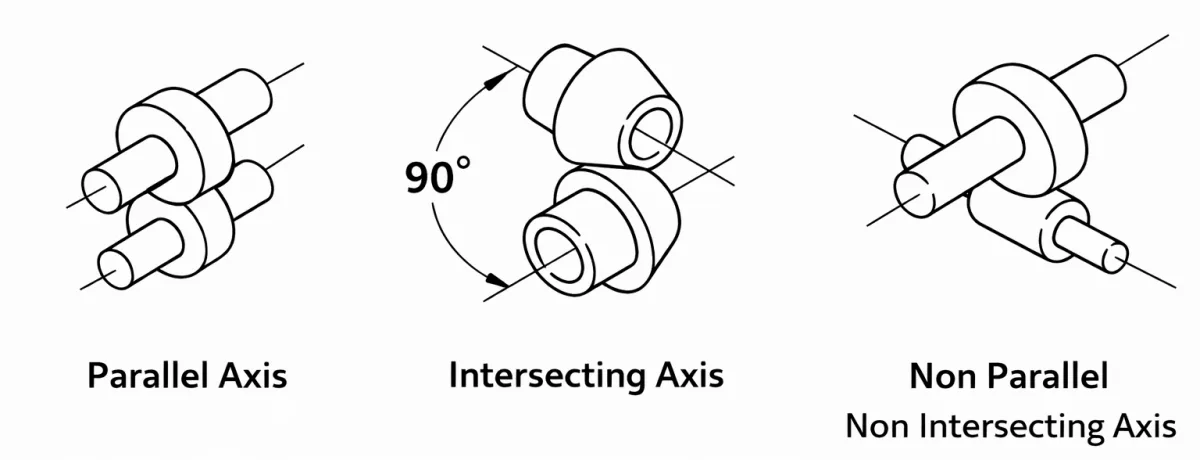

How Shaft Arrangement Shapes Gear Choice

Before tooth form matters, the position of the shafts does. Depending on how the input and output axes sit relative to one another — parallel, meeting at an angle, or crossing without ever meeting — only part of the gear family is usable at all. The table below groups the three arrangement families with the gears that suit each one and the trade-off that comes with them.

The example gears appear by shape as well as arrangement, so the same family can turn up in more than one row: a helical gear serves parallel shafts or crossed shafts depending on how its teeth are cut and how it is mounted.

Axes	What it describes	Typical uses	What you gain	Gear types
Parallel	Both members turn on shafts that stay parallel to each other	Conveyors, lifting and mixing equipment, machine feeds	Efficient power transfer with good load capacity in a compact envelope	Spur, helical, rack and pinion
Intersecting	The shafts meet at an angle, most often 90°	Differentials, hand drills, industrial drives	A change of direction at high efficiency with a small installed footprint	Straight bevel, spiral bevel, miter
Skew	The shafts cross in space without meeting — neither parallel nor intersecting	Worm-driven conveyors and elevators, hypoid axles, robot joints	Very large reductions, quiet running under heavy load, flexible packaging	Worm, hypoid, crossed helical

The Gear Types You Will Meet in Engineering

The section above sorted gears by how they mount. This one sorts them by shape, features and the motion they produce.

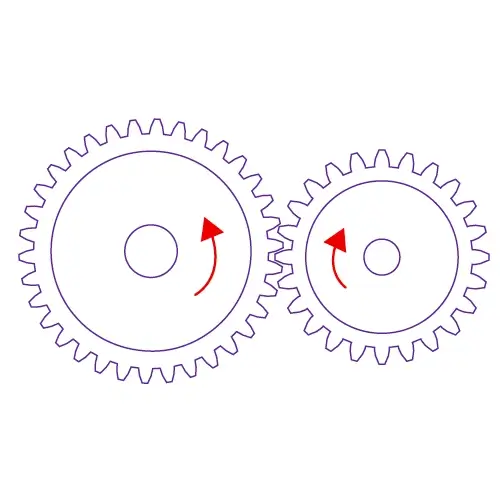

Spur Gears

Spur gears are the plainest member of the family: a cylinder whose teeth are cut parallel to the axis of rotation. Teeth can sit on the outside of the blank or, less commonly, on the inside of a ring, and two spur gears on parallel shafts mesh directly to give a predictable, efficient drive.

The weakness is sound. Each tooth engages across its full width at once, so a spur pair gets noisy as speeds climb. That keeps them in the slow and moderate range — conveyor drives, cutting machines, winches and household appliances.

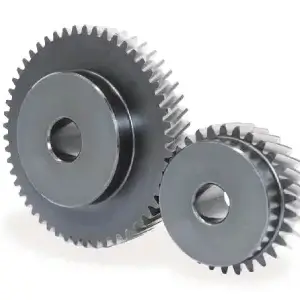

Helical Gears

Angle the teeth instead of standing them straight up and the result is a helical gear. Because each tooth enters the mesh gradually rather than all at once, the pair runs more smoothly and far more quietly, with less vibration than a spur set of the same size. Vehicle transmissions, turbines and pumps are dominated by helical gears for exactly that reason.

The trade-off is an axial force: angled teeth push along the shaft as they carry torque, so bearings and housings have to be sized to absorb that thrust. Helical gears work on parallel shafts, and on crossed shafts they act as screw gears.

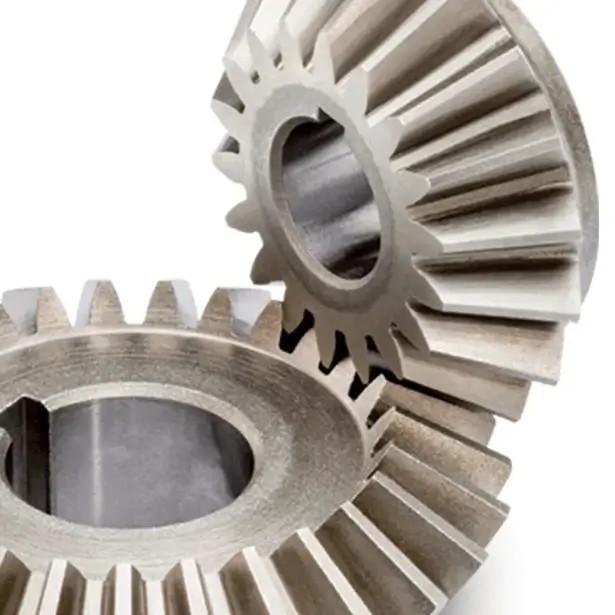

Bevel Gears

A bevel gear is conical, with teeth cut into the tapered face rather than around the rim. It is the standard answer when the shafts intersect, usually at a right angle, and it turns the drive through that corner while keeping transmission losses low.

Three shapes cover most requirements:

• Straight bevel — teeth run straight down the taper; straightforward to produce, louder at speed.
• Spiral bevel — curved, oblique teeth that engage progressively, so the pair is smoother and stronger.
• Miter — a matched pair on 90° axes with equal tooth counts, giving a 1:1 ratio.

Vehicle differentials are the classic application, letting the driven wheels turn at different rates through a corner. Hand tools, power transmission units and machine heads use bevel pairs for the same reason.

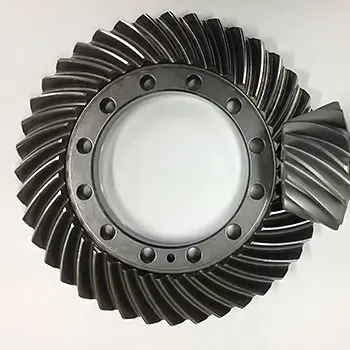

Hypoid Gears

Move the pinion of a spiral bevel set off the centerline — above or below the crown of the ring gear — and the pair becomes a hypoid gear. The axes no longer intersect, which gives designers room to lower the driveshaft and flatten the vehicle floorpan.

Hypoid gears run quietly, carry heavy loads and appear in almost every automotive axle and multi-stage gearbox. They cost more to produce than a straight bevel pair because the tooth geometry has to be generated rather than simply indexed.

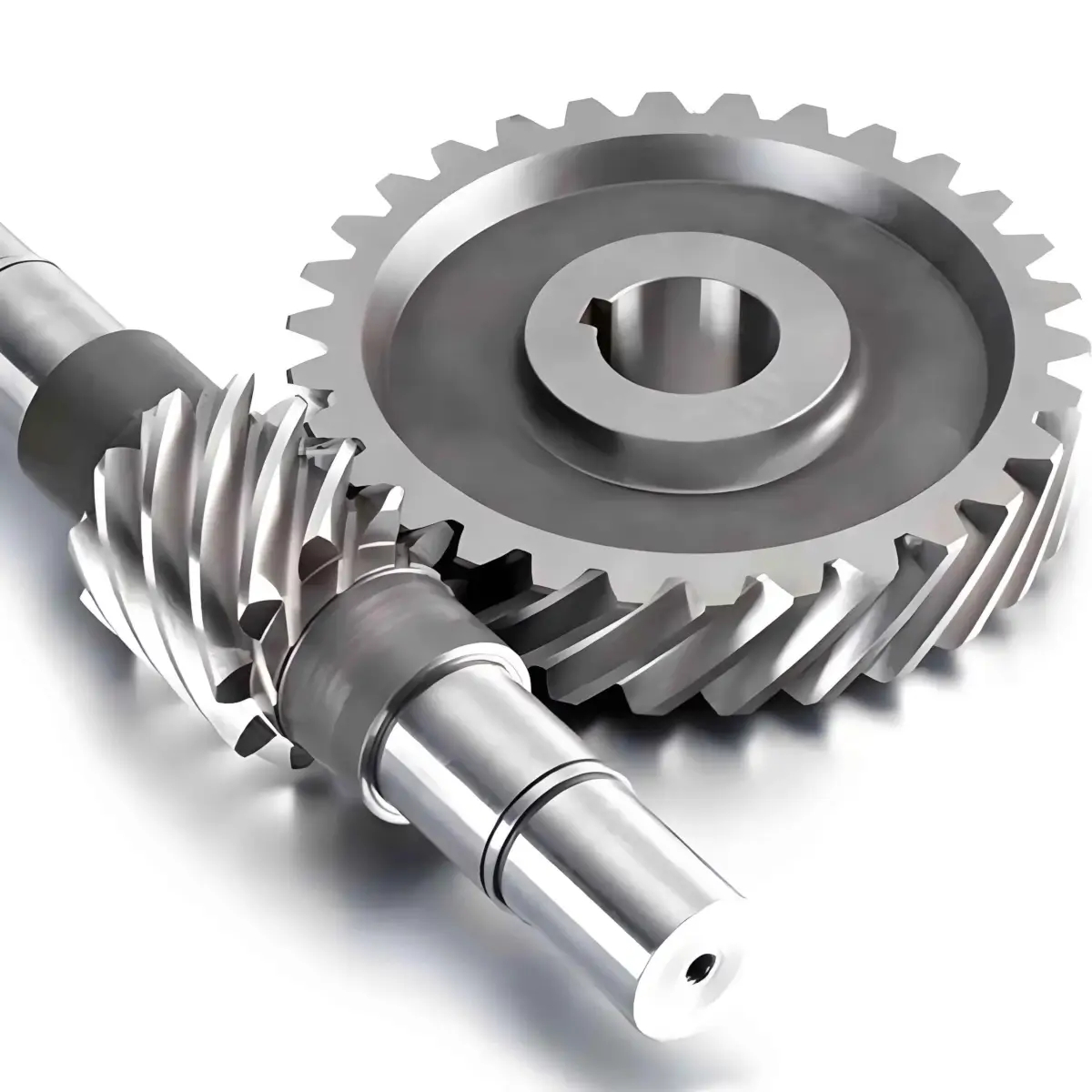

Worm Gears

A worm drive pairs a screw-shaped worm with a toothed worm wheel, the two axes set at right angles. One turn of the worm advances the wheel by a single tooth, so a short package delivers a very large reduction and a corresponding jump in torque.

Most designs are also self-locking — the wheel cannot drive the worm backwards — which is why hoists, elevators, indexing tables and conveyors rely on them as a safety feature. The pair is quiet and compact as well. The price is efficiency: sliding contact generates heat, so lubrication and the choice of worm wheel material matter more here than on any other gear type.

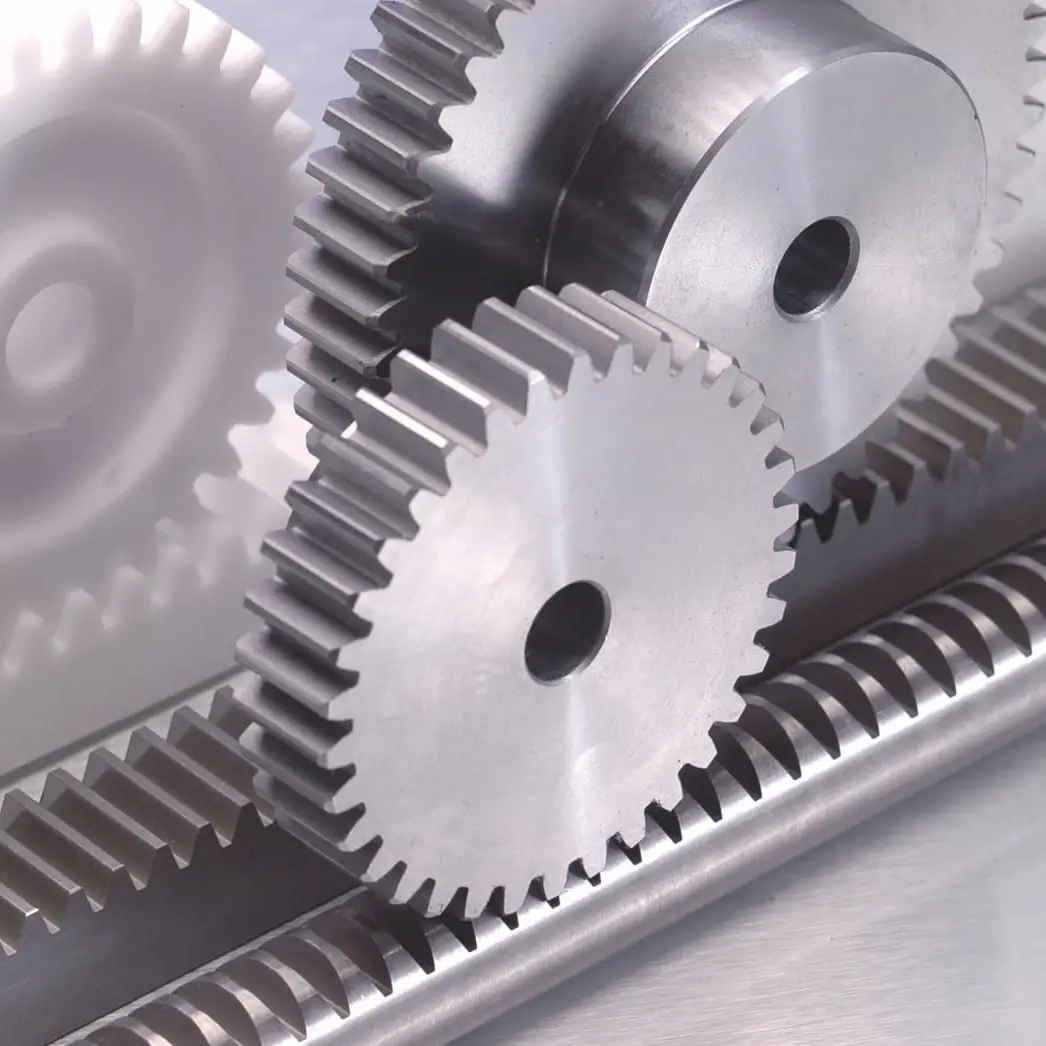

Rack and Pinion

A rack and pinion turns rotation into straight-line travel. A circular pinion runs along a flat toothed bar, and every revolution of the pinion moves the rack a fixed distance.

The arrangement is simple, durable and easy to preload. Steering systems are the best-known example, with the pinion turning on the steering column and shifting the rack left or right to steer the front wheels. CNC axis drives, sliding doors and camera sliders use the same idea.

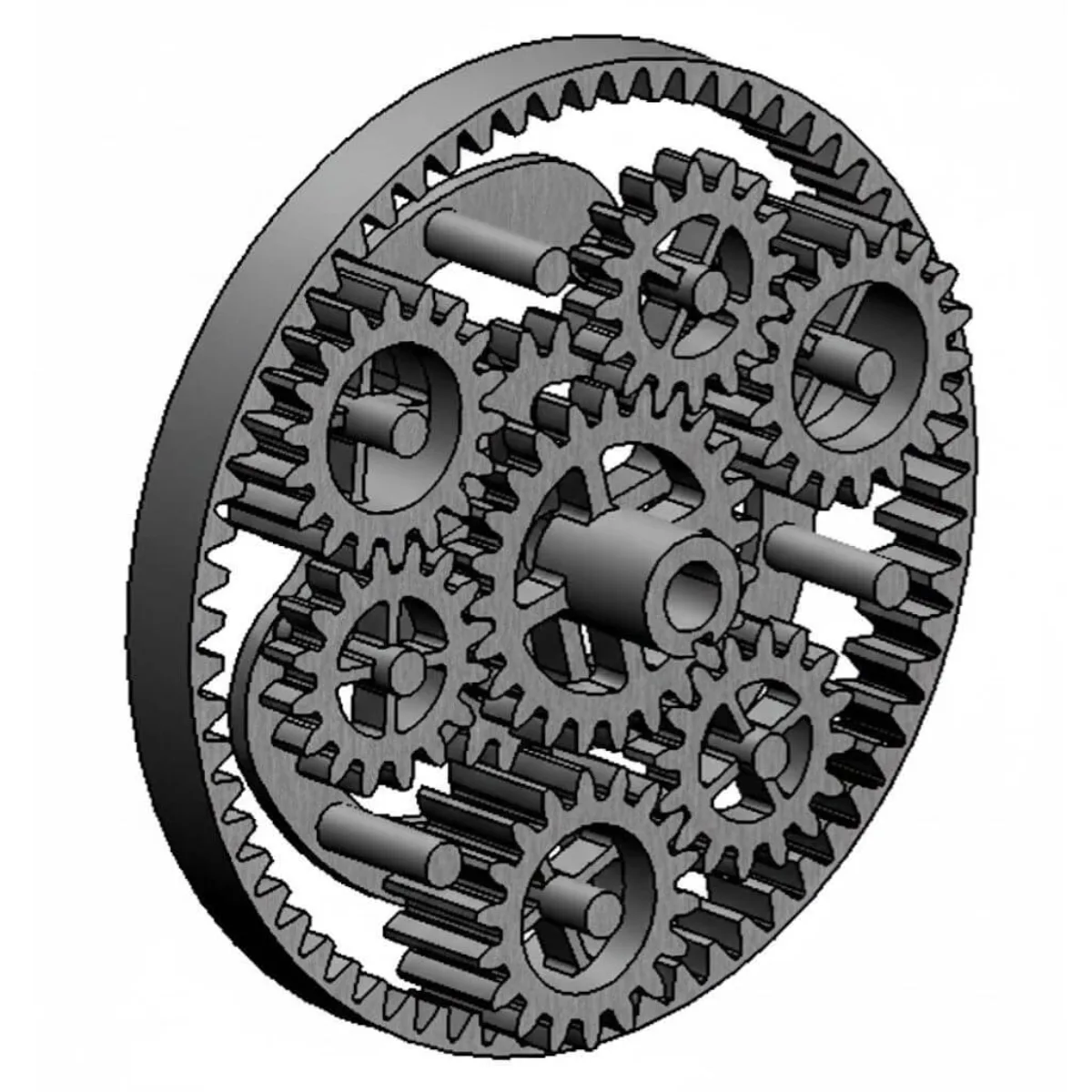

Planetary Gear Sets

A planetary set is a configuration rather than a single gear. A central sun gear drives several planet gears that orbit it inside a toothed ring. Load is shared across all the planets, so the arrangement packs high torque capacity into a short, coaxial package — and holding different members stationary produces several ratios from the same hardware.

Automatic transmissions, wheel hubs, industrial reducers, robot joints, bicycle hubs and 3D printer extruders all make use of planetary trains.

Gear Materials: Metal or Plastic

Steel and bronze handle the heavy work, but a surprising share of the world's gears are molded from engineering plastics. The decision comes down to load, speed, noise, lubrication and volume.

Metal Gears

Metal remains the default for gears carrying high torque at high speed, on the strength of durability and heat resistance that polymers cannot match.

• Carbon steel — a general-purpose gear steel with a good strength-to-weight balance; inexpensive and easy to cut.
• Alloy steel — alloying elements raise strength and impact resistance for demanding industrial drives.
• Stainless steel — corrosion resistance for food, medical and marine equipment where lubrication is restricted.
• Cast iron — excellent damping, which keeps large, slow-turning gears quiet.
• Bronze — the traditional partner for worm wheels, where low friction against a hardened steel worm limits wear.

Plastic Gears

Plastic gears are light, quiet and cheap, and many grades are self-lubricating, so a molded gear can often run with no grease at all.

• Nylon — tough and wear resistant with natural lubricity; it absorbs moisture, so tolerances need care.
• Acetal (POM) — dimensionally stable with low friction and low moisture uptake; the workhorse of small molded gears.
• Polycarbonate — strong and impact resistant for gears that have to soak up shocks.
• PEEK — a high-temperature option for gears running hot or in aggressive chemicals.

Plastic is not a drop-in substitute for metal under heavy load. These materials run cooler and quieter, but strength and stiffness fall away as temperature rises, so tooth loads have to stay inside the material's limits.

How Gears Are Cut, Molded and Finished

The route from blank to finished gear depends on the tooth form, the material and the quantity required. Nearly every metal gear passes through a cutting operation that generates the teeth, followed by one or more finishing steps that bring accuracy, hardness and surface quality up to the specification on the drawing.

Gear Cutting Processes

Gear cutting is a machining family in its own right. The table compares the methods we use most often on metal gears.

Process	How it works	Strengths	Limits	Best suited to
Gear hobbing	A rotating hob with helical cutting edges feeds across the blank, generating every tooth in one continuous pass	Fast and economical	Tooling is dedicated to the tooth form	Spur and helical gears at volume
Gear shaping	A pinion-shaped cutter reciprocates while cutter and blank rotate together	Versatile and accurate; reaches internal teeth	Slower than hobbing	Internal gears, special profiles
Gear milling	A form cutter on a milling machine removes one tooth space at a time	Low tooling cost, flexible	Slow, so cost per part is high	One-offs, low volumes, worms
Gear broaching	A toothed bar is pushed or pulled through the bore, cutting all teeth in a single stroke	Extremely fast once set up	Expensive tooling	Internal gears, high-volume spur and helical
Gear skiving	Cutter and workpiece run at crossed angles, scraping material away in a continuous cut	Very fast, particularly inside ring gears	Complex programming and tooling	Internal gears such as planetary rings
5-axis form milling	Indexable insert cutters on a 5-axis machine generate the profile from CAD	No special tooling; ideal for prototypes	Slower than hobbing at high volume	Custom and non-standard tooth forms

Injection Molding for Plastic Gears

Thermoplastic gears are usually molded rather than cut. Once the tool exists, a single shot produces a finished gear with no secondary tooth cutting, so the economics flip as volume rises: from roughly 5,000 pieces upward, molding normally beats machining a blank on cost, and at volumes in the tens or hundreds of thousands the gap is wide. At the other end of the range the tool dominates, and machined or 3D-printed gears make more sense.

Molding also brings design freedom. Hubs, bosses and mounting features can be formed in the same shot, and the material itself can add corrosion resistance and vibration damping that metal cannot deliver at the same weight.

Post-Processing and Finishing

Cutting produces the geometry; finishing decides how well the gear will run. These are the operations that follow the teeth-cutting step in our own shop:

• Grinding — abrasive wheels take a controlled amount of stock off the flanks, correcting heat-treatment distortion and lifting both accuracy and surface quality. Form grinding uses a wheel profiled to match the tooth space; generating grinding runs an abrasive worm wheel in mesh with the gear and is considerably faster.
• Honing — a specialized tool makes fine corrections to tooth shape after grinding. It is slower, but generates far less heat, which matters on case-hardened flanks.
• Lapping — an abrasive paste used with mating tools to match a gear pair to each other. Extremely accurate for contact patterns, but costly and hard to automate.
• Heat treatment — carburizing adds carbon at high temperature to build a hard, wear-resistant case over a tough core; nitriding introduces nitrogen at lower temperature for fatigue resistance with minimal distortion; induction hardening uses an electromagnetic field to harden selected zones such as the tooth flanks.
• Surface treatment — plating, black oxide and lubricating coatings are applied where corrosion resistance, break-in behavior or appearance matters.

Custom Gear Manufacturing at SHBD Metal

Gears leave our shop as finished parts: teeth generated on CNC equipment, then ground, hardened or coated to the drawing, with dimensions recorded against the revision that produced them. Because machining and molding sit under one roof, the same drawing can be quoted either way, and we will say plainly which route costs less at your quantity.

The gear work sits inside our wider CNC machining service, covering 3-axis and 5-axis milling, turning and precision grinding. Materials we run are listed in the materials library, and every order is inspected under our quality system.

Send a 2D drawing or a 3D model and we return a quotation, the process route we intend to use, and any feature we would change before cutting metal.

FAQs

Which gear types turn up most often in mechanical engineering?
Spur, helical and bevel gears cover the bulk of everyday drives. Worm sets and rack-and-pinion arrangements handle the more specialized jobs where a very large reduction or straight-line travel is needed.

What tooth profiles are available?
Involute is the standard profile for power transmission, with cycloid and trochoid reserved for special cases. The teeth themselves can be cut straight, angled (helical) or double helical, or arranged around a cone as in bevel gears.

How does the meshing pattern differ between gear types?
Contact depends on tooth shape and shaft position together. Helical gears on parallel shafts hold a line of contact across the face width; mount the same gears on crossed shafts and that contact reduces to a single point.

How is a gear actually made?
Metal gears begin as a blank — forged or cast on production runs — and the teeth are then generated by hobbing, shaping, skiving or milling. General-purpose milling is slower than a dedicated gear-cutting process. Plastic gears follow the same logic up to the tooling stage, then are usually molded in a cavity cut to the tooth form.

Which material should a gear be made from?
Metal where strength and durability matter most; steel, cast iron and bronze are the usual answers. Plastic where weight, noise and self-lubrication dominate, with nylon, acetal and polycarbonate covering most of those jobs and PEEK available for higher temperatures.
