What Is Annealing? How It Enhances Material Properties

When engineers and manufacturers work with metals, they demand strength and durability. Metal parts are expected to last, and their stress resistance is what makes them useful in applications far and wide.

Sometimes, however, manufacturers need their metals to be soft and ductile. Because when metals are very hard, they are harder to bend, form, and cut into the desired shape. In other words, more ductility and less hardness mean better workability from the metalworker’s perspective.

In metalworking, heat treatment processes like annealing can be used to increase the ductility and reduce hardness of metals to make them more workable. This article looks at how annealing works and how it is used to improve a huge variety of metal (and sometimes non-metal) parts.

What Is the Annealing Process?

Annealing is a heat treatment process that softens metal, reduces its hardness, relieves internal stresses, and increases its ductility. All of these physical changes improve the workability of the metal, making it easier to use in manufacturing processes like bending or machining.

As well as making metals easier to work with, annealing can stabilize a material’s chemical properties and increase the lifespan of the finished metal parts, as it helps prevent fracturing down the line. The process can even be used on non-metal materials like glass and plastics to achieve similar benefits.

How Does Annealing Work?

Annealing works by heating a material above its recrystallization temperature but below its melting point. This allows atoms to move in a process known as diffusion. The heating stage is followed by a period of controlled cooling process, forming new, stress-free grains. Precise control of cooling rates is critical, as overly rapid or slow cooling can negatively affect performance.

The process as a whole realigns the crystal structure of the metal, reducing dislocations and making the metal softer and easier to shape for further manufacturing.

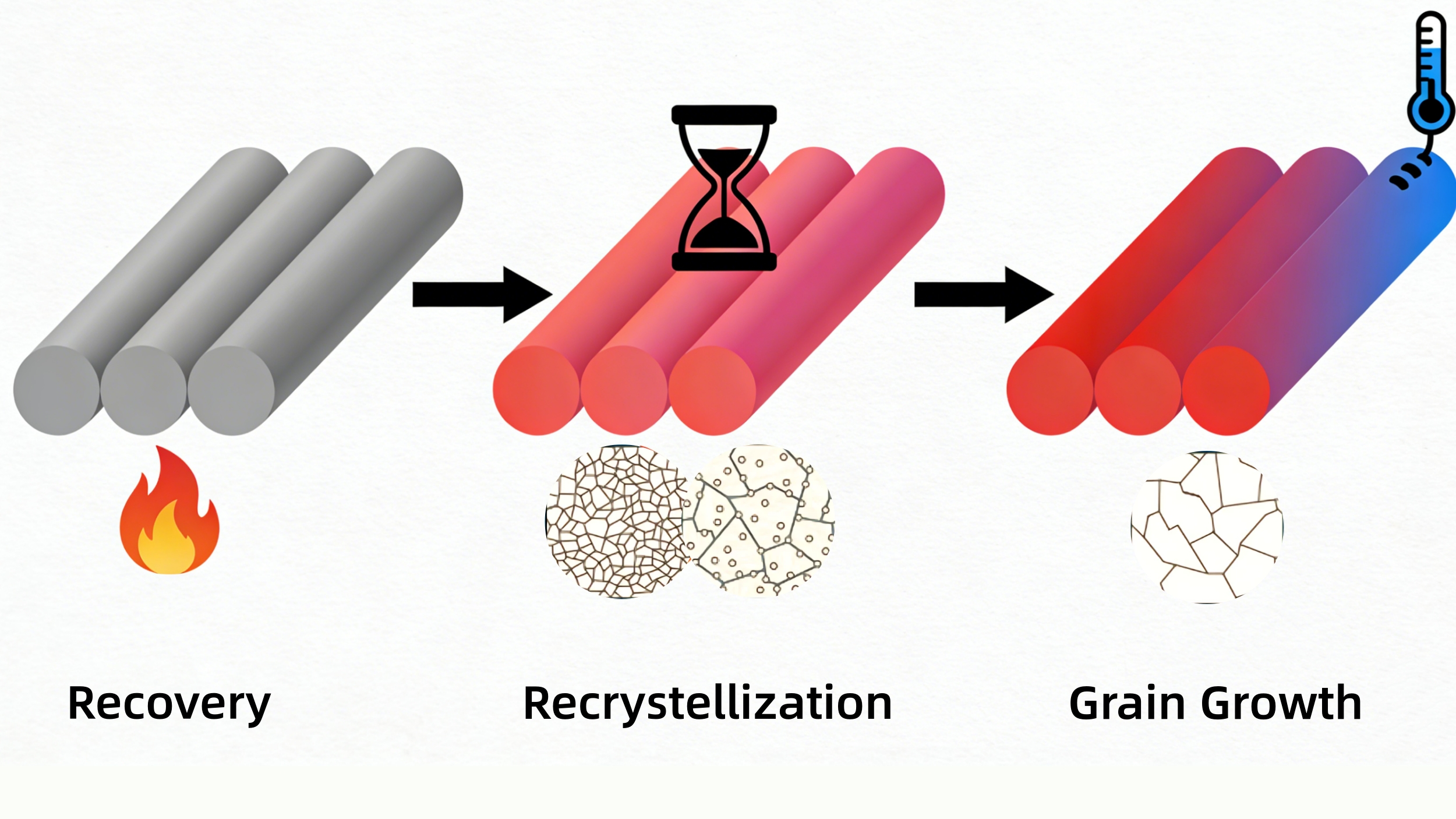

Three Stages of Annealing

1. Recovery

When the temperature of the metal is raised, it goes through a recovery stage—so called because the metal begins to recover its “original,” softer properties.

Recovery softens the metals by removing defects known as dislocations, eliminating internal lattice defects, and reducing residual stresses. This happens because the heat provides energy to the atoms in the crystal lattice, allowing them to move.

2. Recrystallization

The recrystallization stage takes place at the material’s specific recrystallization temperature, higher than before but below the melting point. During this stage, new strain-free grains nucleate and replace their deformed predecessors.

3. Grain Growth

Grain growth, the third stage, only occurs if the annealing process continues beyond full recrystallization.

During the grain growth stage, the size of individual grains increases. This causes the microstructure of the material to coarsen, which can further improve softness and ductility but can ultimately weaken the material.

Types of Annealing

Different annealing types or variants can result in different effects. These annealing subtypes include:

• Stress Relief Annealing: Involves low-temperature heating of the material to relieve internal stresses from welding, casting, or machining, followed by slow cooling.
• Process Annealing: Also called intermediate annealing, subcritical annealing, or in-process annealing. Restores ductility in between cold working stages without fully softening the material.
• Full Annealing: Used to significantly improve ductility, particularly of steel. Involves heating the material above critical temperature, holding it, then cooling very slowly to create uniform ferrite-pearlite structure.
• Isothermal Annealing: Involves heating the materialto form austenite, followed by rapid cooling and holding to complete the pearlitic transformation and create uniform hardness.
• Diffusion Annealing: Also called homogenizing, involves high temperatures to reduce segregation.
• Solution Annealing: Involves heating the alloy—typically austenitic stainless steel—to high temperatures to dissolve precipitates into solid solution, then rapidly cooling to retain corrosion resistan
• Bright Annealing: Involves use of an inert atmosphere to prevent oxidation and produce a “bright” surface finish.
• Short Cycle Annealing: Involves repeat cycles of heating and cooling to turn normal ferrite into malleable ferrite.
• Spheroidizing: Involves heating the material just below the critical temperature for a long time. Make high-carbon steels easily machinable by forming spherical carbide structures (spheroids).
