Every machined part leaves the spindle with a story written on its surface. Tool marks, feed lines, and microscopic peaks and valleys are the natural byproducts of material removal. For many engineers and designers, deciding how to treat that surface — whether to leave it as-is or apply a secondary finishing process — is just as critical as selecting the right material or tolerance.
Surface finish in CNC machining is not merely about appearance. It affects friction, wear resistance, sealing capability, corrosion protection, and the overall longevity of a component. Choosing the correct finish can mean the difference between a part that performs reliably for years and one that fails prematurely.
In this guide, we break down what surface finish means in practice, explain the key measurement standard (Ra), present a visual reference chart, explore the most common types of surface finishes for CNC machined parts, and provide a practical framework for selecting the right finish for your project.

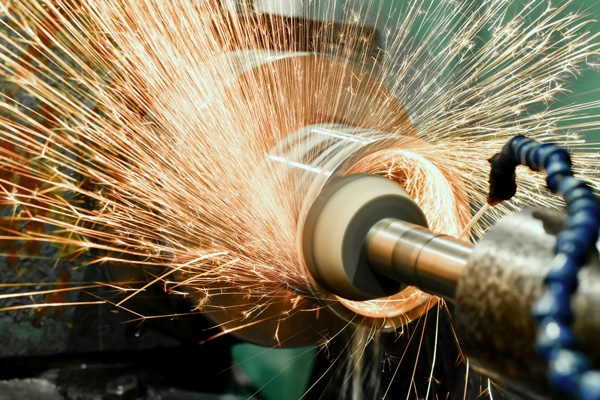

What is Surface Finish?
Surface finish refers to the texture, roughness, or smoothness of a component's surface after machining operations are complete. It is the measurable quality of the surface left behind by cutting tools, grinding wheels, or other material removal processes.
Every machining operation — milling, turning, drilling, or grinding — leaves a characteristic pattern of irregularities on the workpiece. These irregularities include tool feed marks, vibration chatter, material tear-out, and burrs. The degree and nature of these surface features determine the part's effective surface finish.
Surface finish matters because it directly influences how a part behaves in service. A rough surface can increase friction between moving parts, accelerate wear, create stress concentration points where cracks initiate, and compromise sealing surfaces. A properly specified finish improves performance, extends service life, and can eliminate the need for secondary operations.
The most widely accepted metric for quantifying surface finish is Ra (Roughness Average). Ra represents the arithmetic average height of surface irregularities measured from a mean line. It is expressed in micrometres (μm) or microinches (μin). A lower Ra value indicates a smoother surface; a higher Ra value indicates a rougher surface.

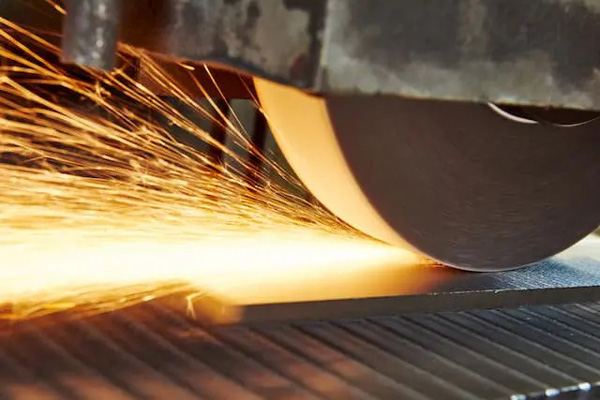

What Does Ra Actually Mean?
Ra is calculated by taking multiple height measurements across a surface profile and computing their average deviation from the centerline. Think of it as the average "peak-to-valley" distance across the measured length of the surface.
In practical terms:
- Ra 0.1 μm (4 μin) — Mirror-like polished surface. Used for sealing faces, optical components, and precision bearings.
- Ra 0.4 μm (16 μin) — Fine ground finish. Common for precision shafts and mating surfaces.
- Ra 0.8 μm (32 μin) — Smooth machined finish. Suitable for functional surfaces with light contact.
- Ra 1.6 μm (63 μin) — Standard machined finish. Acceptable for most general engineering components.
- Ra 3.2 μm (125 μin) — Coarse machined finish. Visible tool marks, typical for non-critical surfaces.
- Ra 6.3 μm (250 μin) — Rough finish. Heavy tool marks, used for clearance surfaces only.
Different industries apply different Ra requirements. Aerospace components often demand Ra 0.4 μm or better for fatigue-critical surfaces. Medical implants may require Ra 0.2 μm to prevent bacterial adhesion. General industrial parts commonly accept Ra 1.6–3.2 μm as standard.
The CNC Surface Finish Chart: A Visual Guide
A surface finish chart, also referred to as a surface roughness chart, provides a standardized reference for selecting and specifying finishes. It maps Ra values to standard ISO grade numbers (N1 through N12) and describes the visual appearance, typical production method, and relative cost of each finish level.
| Ra (μm) | Ra (μin) | N Grade | Finish Description | Visual Appearance | Common Process | Relative Cost |
|---|---|---|---|---|---|---|
| 6.3 | 250 | N9 | Rough Machining | Clear tool marks | Rough milling, turning | $ |
| 3.2 | 125 | N8 | Standard Machining | Visible tool marks | Standard milling, turning | $ |
| 1.6 | 63 | N7 | Fine Machining | Slightly visible marks | Fine milling, turning | $$ |
| 0.8 | 32 | N6 | Smooth Finish | Barely visible marks | Grinding, fine boring | $$ |
| 0.4 | 16 | N5 | Very Smooth | No visible marks | Grinding, honing | $$$ |
| 0.2 | 8 | N4 | Fine Ground | Near-matte finish | Precision grinding | $$$ |
| 0.1 | 4 | N3 | Polished | Mirror-like | Lapping, polishing | $$$$ |
| 0.05 | 2 | N2 | Super Polished | High mirror | Superfinishing | $$$$$ |
This chart serves as a starting point. The actual achievable finish depends on material properties, machine rigidity, tool geometry, and cutting parameters. Always consult with your machining partner to confirm what is realistically attainable for your specific part geometry.

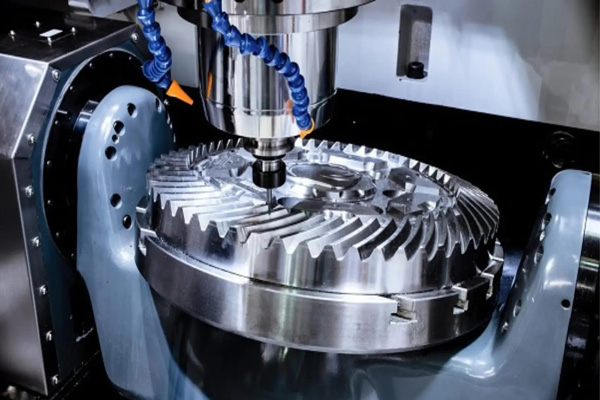

What is the Standard Surface Finish for CNC?
Among engineers and machine shops, one Ra value stands out as the default benchmark: Ra 3.2 μm (125 μin). This is the surface finish produced by a standard milling or turning operation without any secondary grinding, polishing, or finishing steps.
Why Ra 3.2 μm is the Most Common Standard
Ra 3.2 μm has become the de facto standard for several practical reasons:
- Manufacturability — It is readily achievable with standard carbide tooling and conventional machining parameters on most CNC equipment. No special tooling, reduced feed rates, or secondary operations are required.
- Cost efficiency — Producing a Ra 3.2 finish does not add cycle time or cost compared to a rougher finish. In many cases, it is the natural result of standard roughing and finishing passes.
- Functional adequacy — For the majority of structural components, brackets, housings, and internal parts that do not experience sliding contact or require sealing, Ra 3.2 provides adequate surface quality without being unnecessarily smooth.
- Industry acceptance — Engineering drawings across automotive, industrial equipment, consumer goods, and general machinery commonly specify Ra 3.2 as a default callout when no tighter surface finish is functionally required.
When Standard is Not Enough
Certain applications demand finishes better than Ra 3.2. Medical devices, aerospace structural components, sealing surfaces, dynamic sealing interfaces, and visible consumer-facing parts often require Ra 1.6, 0.8, or even 0.4 μm. These tighter finishes add cost through reduced cutting parameters, additional finishing passes, grinding operations, or manual polishing. Always specify the loosest finish that meets your functional requirements to avoid unnecessary expense.
Different Types of CNC Surface Finishes
Surface finishes for CNC machined parts fall into two broad categories: mechanical finishes achieved directly through machining parameters, and applied finishes that involve secondary coating or treatment processes. Below are the most commonly specified types.

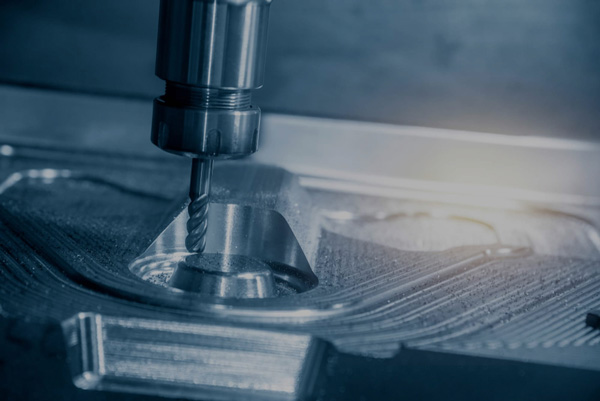

As Machined

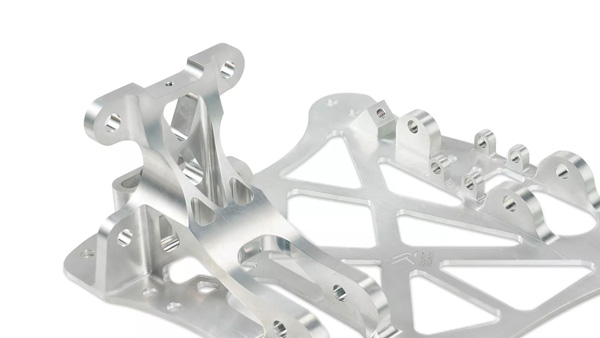

An as-machined finish is the surface left directly by the cutting tool after the final machining pass. No additional treatment is applied. The surface exhibits characteristic tool feed marks and a matte appearance with Ra typically in the 1.6–6.3 μm range depending on process parameters.
Advantages: Lowest cost, fastest turnaround, no secondary processing required.
Limitations: Visible tool marks, sharp edges may have burrs, limited corrosion resistance.
Best for: Internal components, prototyping, non-visible parts, functional surfaces that do not require smoothness.
Bead Blasting
Bead blasting propels fine glass or ceramic beads at high velocity against the part surface. The impact peens the surface, creating a uniform matte or satin finish that masks tool marks and machining irregularities. It also imparts a slight compressive stress layer that can improve fatigue resistance.
Advantages: Uniform appearance, masks surface defects, no dimensional change, works on complex geometries.
Limitations: Can embed media in soft materials, may round sharp edges, not suitable for sealing surfaces.
Best for: Cosmetic parts, consumer products, parts requiring uniform visual appearance.
Anodizing
Anodizing is an electrochemical process that grows a controlled oxide layer on the surface of aluminum and titanium parts. This oxide layer is hard, wear-resistant, and can be dyed in various colors. Type II anodizing produces decorative and protective coatings, while Type III (hard coat anodizing) creates thick, extremely hard surfaces.
Advantages: Excellent corrosion resistance, available in multiple colors, improves surface hardness, electrically insulating.
Limitations: Only works on aluminum and titanium, adds slight dimensional build-up, color variation possible between batches.
Best for: Aerospace components, electronics enclosures, outdoor equipment, consumer goods.
Powder Coating
Powder coating applies a dry powder (thermoplastic or thermoset polymer) electrostatically to the part surface, followed by heat curing in an oven. The result is a tough, thick, uniform coating that provides excellent corrosion protection and impact resistance.
Advantages: Very durable, wide color range, uniform coverage, excellent corrosion protection, good for large parts.
Limitations: Adds significant thickness (typically 60–120 μm), masks threads and precision surfaces, not suitable for high-temperature applications.
Best for: Handles, machine frames, enclosures, outdoor structures, automotive components.
Polishing
Polishing removes surface material through abrasive contact to achieve a smooth, reflective finish. It can be performed mechanically with abrasive wheels and compounds, or manually for intricate geometries. The process progressively reduces surface roughness from Ra 0.8 μm down to Ra 0.1 μm or lower.
Advantages: High gloss aesthetic finish, reduces friction, easy to clean, ideal for display parts.
Limitations: Labor-intensive, expensive for complex geometries, removes material, can alter dimensions.
Best for: Medical instruments, decorative trims, mold cavities, food processing equipment.
Electropolishing
Electropolishing uses an electrochemical bath to remove a thin layer of surface material, preferentially dissolving microscopic peaks and leaving a smooth, clean surface. Unlike mechanical polishing, it does not create a worked layer or introduce abrasive contamination.
Advantages: Burr-free, removes surface contaminants, improves corrosion resistance, no mechanical stress, consistent results.
Limitations: Only works on conductive materials, slight material removal, may highlight grain structure.
Best for: Medical implants, food-grade equipment, semiconductor components, stainless steel parts.
How to Choose the Right Surface Finish for Your CNC Part
Selecting the optimal surface finish involves balancing functional requirements, aesthetics, and cost. Work through these five questions to narrow your options:
1. What Will the Part Be Used For?
Start with the part's function. Is it a structural bracket that nobody sees? A consumer product that needs to look premium? A sealing surface that must hold pressure? Functional requirements drive finish selection more than any other factor. Internal components rarely need anything beyond as-machined. Visible parts often benefit from bead blasting or powder coating. Sealing surfaces demand controlled Ra values.
2. How Smooth Does It Really Need to Be?
Specify the loosest finish that still meets your functional needs. Every step down in Ra — from 3.2 to 1.6, or 1.6 to 0.8 — adds machining time and cost. If the part does not experience sliding contact, dynamic stress, or sealing requirements, Ra 3.2 is almost certainly adequate. Use the surface finish chart to identify the minimum acceptable Ra for your application.
3. Will the Part Be Exposed to Harsh Conditions?
Outdoor exposure, chemical contact, humidity, and salt spray all demand protective finishes. Bare machined aluminum will oxidize and may pit over time in outdoor conditions. Anodizing or powder coating adds a protective barrier. Stainless steel may benefit from electropolishing to enhance its natural corrosion resistance.
4. Does Appearance Matter?
For consumer-facing products, appearance often drives finish selection. Bead blasting provides a consistent matte look. Polishing delivers a mirror shine. Powder coating offers unlimited color options. Anodizing gives a metallic appearance with color. Consider the brand image, target market, and expected user experience.
5. What Is Your Budget?
Finishes add cost — sometimes significantly. As-machined is essentially free. Bead blasting adds a modest per-part charge. Anodizing and powder coating cost more, especially for small batches. Polishing and electropolishing are among the more expensive options. Factor finish cost into your per-part budget early, and avoid over-specifying.
Tips for Optimizing Surface Finish in CNC Machining
Even before selecting a secondary finish, several machining strategies can improve as-machined surface quality:
- Use sharp tooling — Dull cutting tools produce a torn, irregular surface. Replace inserts at appropriate intervals.
- Optimize feeds and speeds — Lower feed rates generally produce finer finishes. A finish pass with reduced feed (0.05–0.15 mm/rev) can significantly improve Ra.
- Apply the right coolant — Adequate coolant flow prevents built-up edge and thermal damage that degrade surface quality.
- Consider climb milling — Climb milling produces a cleaner surface than conventional milling due to reduced tool deflection and chip thinning.
- Specify material condition — Pre-hardened or stress-relieved materials machine more consistently and produce better surface finishes than annealed or as-rolled stock.
- Use wiper inserts — Wiper geometry inserts can achieve finer finishes at higher feed rates by wiping the surface during each pass.
- Plan finishing passes — A dedicated finishing pass with a small depth of cut (0.25–0.5 mm) and reduced feed rate produces the best surface quality.
Surface Finish vs. Tolerance: What's the Difference?
Though often confused, surface finish and dimensional tolerance describe different characteristics of a machined part:
| Aspect | Surface Finish | Dimensional Tolerance |
|---|---|---|
| What it describes | The texture and smoothness of the surface | The allowable deviation from a specified dimension |
| Measurement unit | Ra (μm or μin) | mm or inches (± value) |
| What it affects | Friction, wear, sealing, appearance | Fit, assembly, interchangeability |
| Measurement method | Profilometer, comparison specimens | Calipers, micrometers, CMM |
| Relationship | Tighter tolerances often require better finishes | Better finishes do not guarantee tighter tolerances |
Both parameters must be specified on engineering drawings. A part can meet dimensional tolerance but fail on surface finish — or vice versa. Communicate both clearly to your machining partner.
Surface Finish vs. Surface Finishing: What's the Difference?
Surface finish is the result — the measured roughness or smoothness of a part surface after processing. It is a quantifiable specification expressed in Ra or other parameters.
Surface finishing is the process — the action of applying a treatment such as polishing, blasting, anodizing, or coating to achieve a desired surface result.
The distinction matters because you choose the finishing process based on the required finish. If Ra 0.4 is needed on a precision shaft, you will specify grinding or polishing as the finishing process. If corrosion resistance is the goal, anodizing or powder coating becomes the finishing process, and the resulting Ra is a secondary consideration.
- Surface finish = the what (measurement outcome)
- Surface finishing = the how (process applied)
Conclusion
Surface finish is a critical specification in CNC machining that affects part performance, appearance, and cost. Understanding the Ra measurement system, the standard finish levels, and the range of available finishing processes empowers you to make informed decisions for your projects.
Key takeaways:
- Ra 3.2 μm (125 μin) is the default standard for general machining — use it unless your application demands tighter control.
- Lower Ra values add cost — specify the loosest acceptable finish.
- Choose secondary finishes (anodizing, powder coating, polishing) based on functional requirements first, aesthetics second.
- Optimize machining parameters — sharp tooling, appropriate feeds and speeds, and dedicated finishing passes improve as-machined surface quality.
- Communicate finish requirements clearly on your engineering drawings to avoid misunderstandings and rework.
